Removing connectors from modules

Connectors are supplied fitted to the modules, to remove the connector from the module follow the steps below.

Note

  • If your connector does not include the Red locking tag (known as the CPA (Connector Position Assurance) then ignore step 1.

  • The illustration below depicts the Master module connector, however the procedure is the same for any of the Molex® connectors used with YachtSense DCS-Series (Digital Control System).

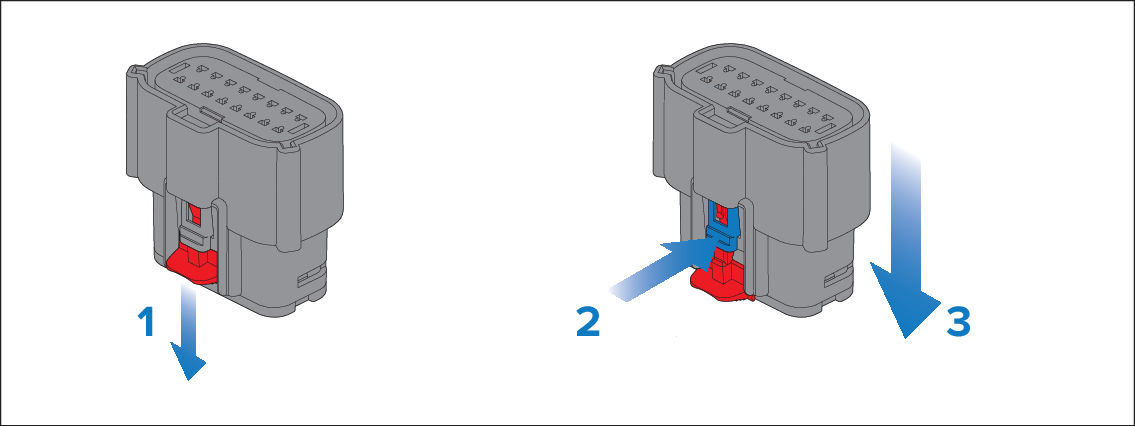

ConnectionsMolexMolexRemoving connectors
  1. If required, pull the Red locking tag down into the unlocked position.
  2. Press the latch in.
  3. Whilst the latch is pressed pull the connector straight down away from the module.
