Remote pin out

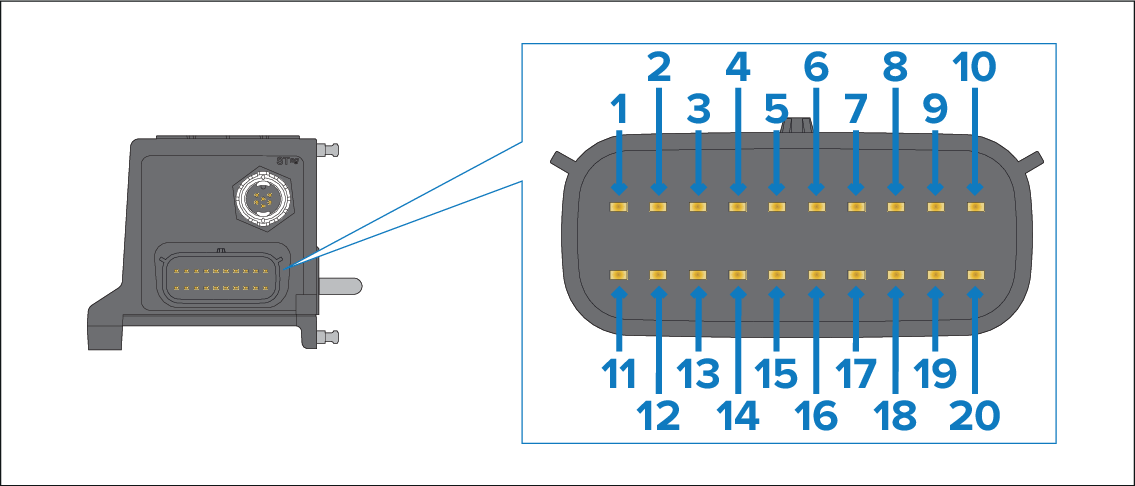

The 20 pin connector on the Remote module allows connection of up to 8 digital / analog inputs and up to 200mA output channels, commonly used to control switches, sensors, relays and actuators. The module’s connector pin out is shown below.
Signal |
Signal |
||
|---|---|---|---|
1 |
IO CH1 + |
11 |
CH1 - |
2 |
IO CH2 + |
12 |
CH2 - |
3 |
IO CH3 + |
13 |
CH3 - |
4 |
IO CH4 + |
14 |
CH4 - |
5 |
IO CH5 + |
15 |
CH5 - |
6 |
IO CH6 + |
16 |
CH6 - |
7 |
IO CH7 + |
17 |
CH7 - |
8 |
IO CH8 + |
18 |
CH8 - |
9 |
Not connected |
19 |
Not connected |
10 |
Do not connect |
20 |
Do not connect |
