Remote module connections

The Remote module allows expansion of the YachtSense DCS-Series Digital Control System and includes built in 8 channel input / output connections.

Input channel capabilities:

  • Digital and analog connection.

  • 4–20mA sensors.

Output channel capabilities:

  • Up to 200mA output

  • 200mA maximum per module.

  • Voltage protection up to 32 V dc

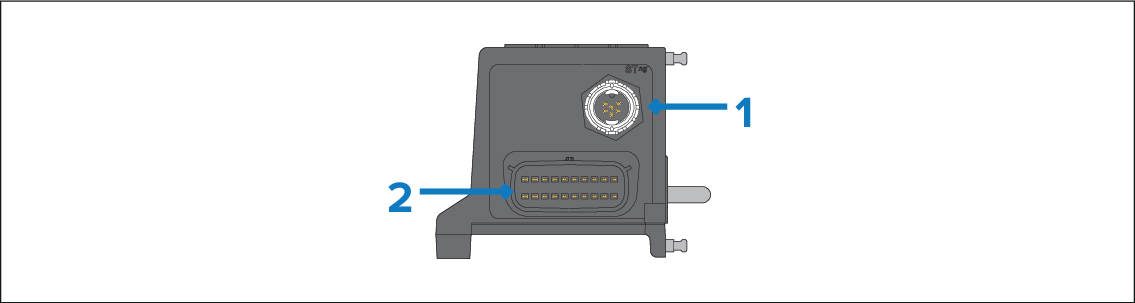

ConnectionsRemote moduleInput / outputRemote module

  1. SeaTalk NGConnectionSeaTalk NG connection — Connects to the SeaTalk NG backbone using SeaTalk NG spur cable. Enables connection to the Master systems and communication with SeaTalk NG sensors.

  2. 20–pin input / output connection — Connects to low power input and output devices using the 20–pin connection.
