Manual override

Output channels can be manually overridden, e.g.: forced on or forced off from the Master or Remote module’s display.

Note

Forced manual override should only be used for as long as it takes to make the situation safe, the connected device should then be switched off and any fault fixed before using the device again.

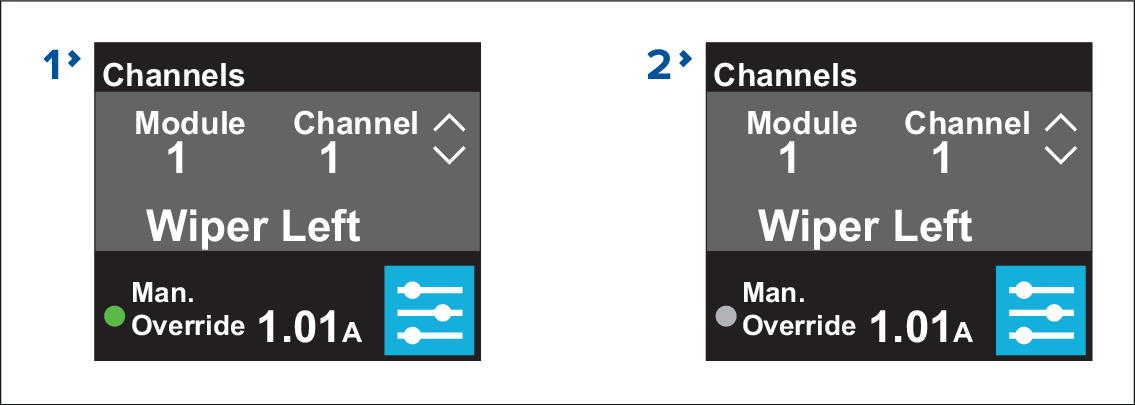

  1. Forced on (override) — Channel status indicator is on (Green).

  2. Forced off (override) — Channel status indicator is off (Gray).
