Fitting the mounting bracket

Master systems and Remote systems are supplied with a mounting bracket and rear shim. Systems that contain more than 4 input / output modules require the mounting bracket and rear shim to be fitted to a module in the middle of the system assembly.

Mounting bracketThe mounting bracket and rear shim should be fitted to the system assembly after all modules have been connected and the camlocks have been engaged.

Note

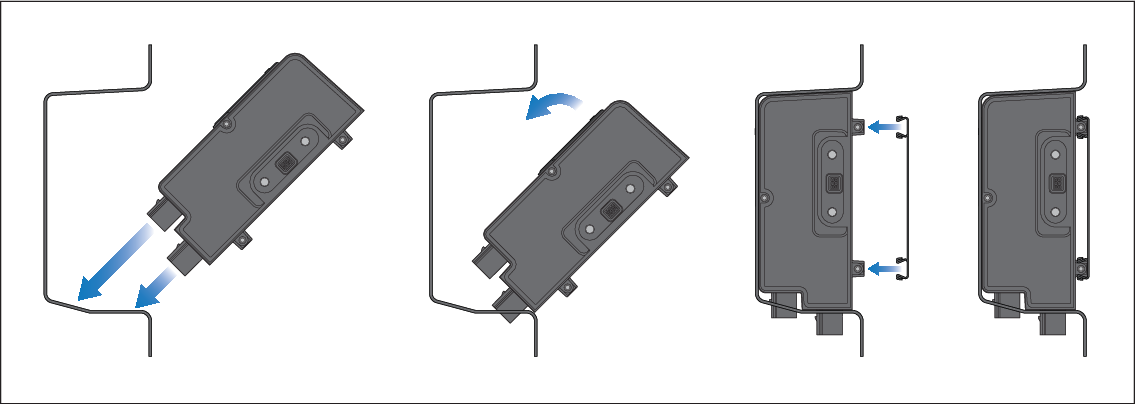

So that the connection of the rear shim can be shown clearly the illustration below shows the bracket being fitted to a single module.

1. Slide the module connector(s) in to the slots in the bottom of the mounting bracket.
2. Push the top of the module into the bracket.
3. Attach the rear shim to the back of the same module that the bracket is attached to.
