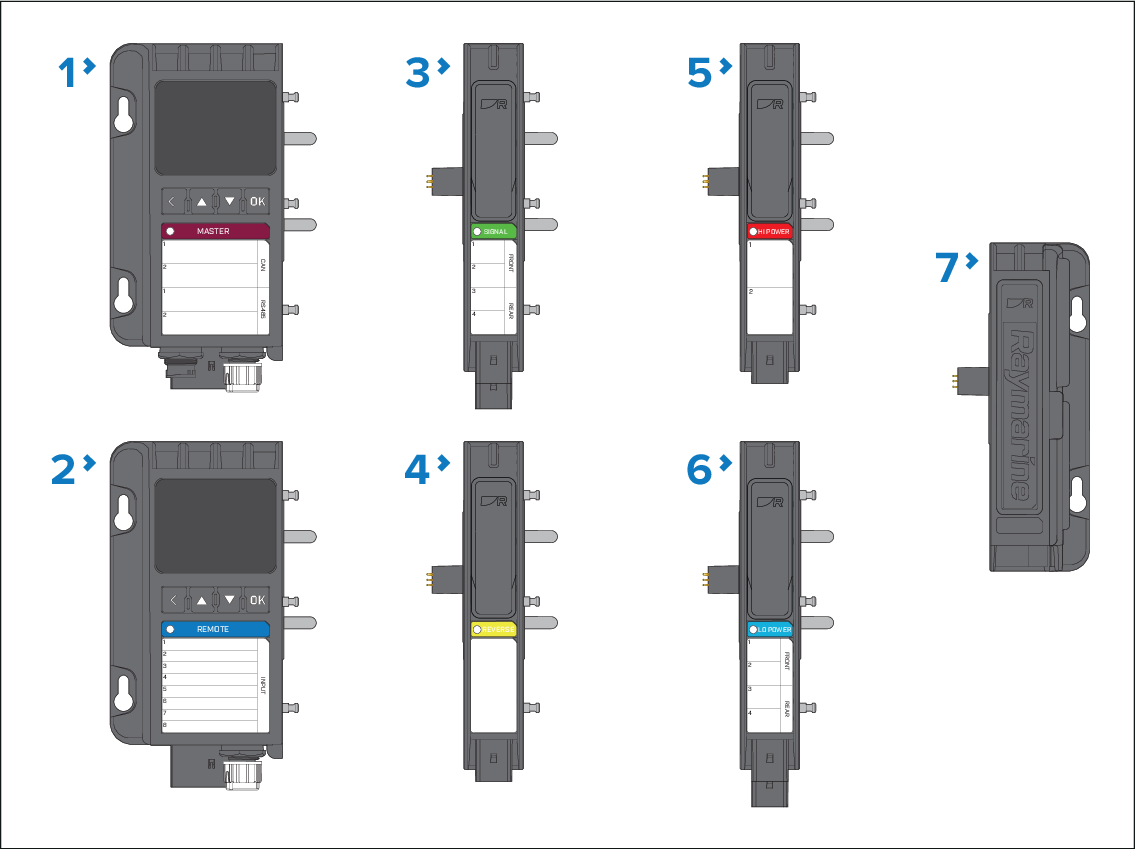

Available modules

Applicable products

1. Master moduleMaster module (E70592)

   • The Master module is required for all installation scenarios and is supplied with a Power supply module (E70604).

   • The Master module can be controlled using a networked chartplotter (MFD) or the Raymarine app.

   • The Master module is connected to Remote modules via connection to a SeaTalk NG network.

   • The Master module includes 2 x J1939 connections, 2 x RS-485 connections.

2. Remote moduleRemote module (E70593)

   • Remote modules are supplied with a Power supply module (E70604).

   • Remote modules include 8 x digital or analog input / output channels.

   • Remote modules are connected to a Master module via connection to a SeaTalk NG network.

3. Signal moduleSignal module (E70597)

   • The Signal module provides 4 x digital or analog input/output channels.

4. Reverse power moduleReverse power module (E70596)

   • The Reverse power module provides 1 x 20A bidirectional channel.

5. High power moduleHigh power module (E70595)

   • The High power module provides 2 x 20A output channels.

6. Low power moduleLow power module (E70594)

   • The Low power module provides 4 x 10A output channels.

7. Power supply modulePower supply module (E70604)

   • The Power supply module is supplied when purchasing a Master module or Remote module.

   • The Power supply module is connected on the end of the Master system and Remote system assemblies.

   • The Power supply module connects to the vessel’s power supply and provides power to the assembly.
