Product overview

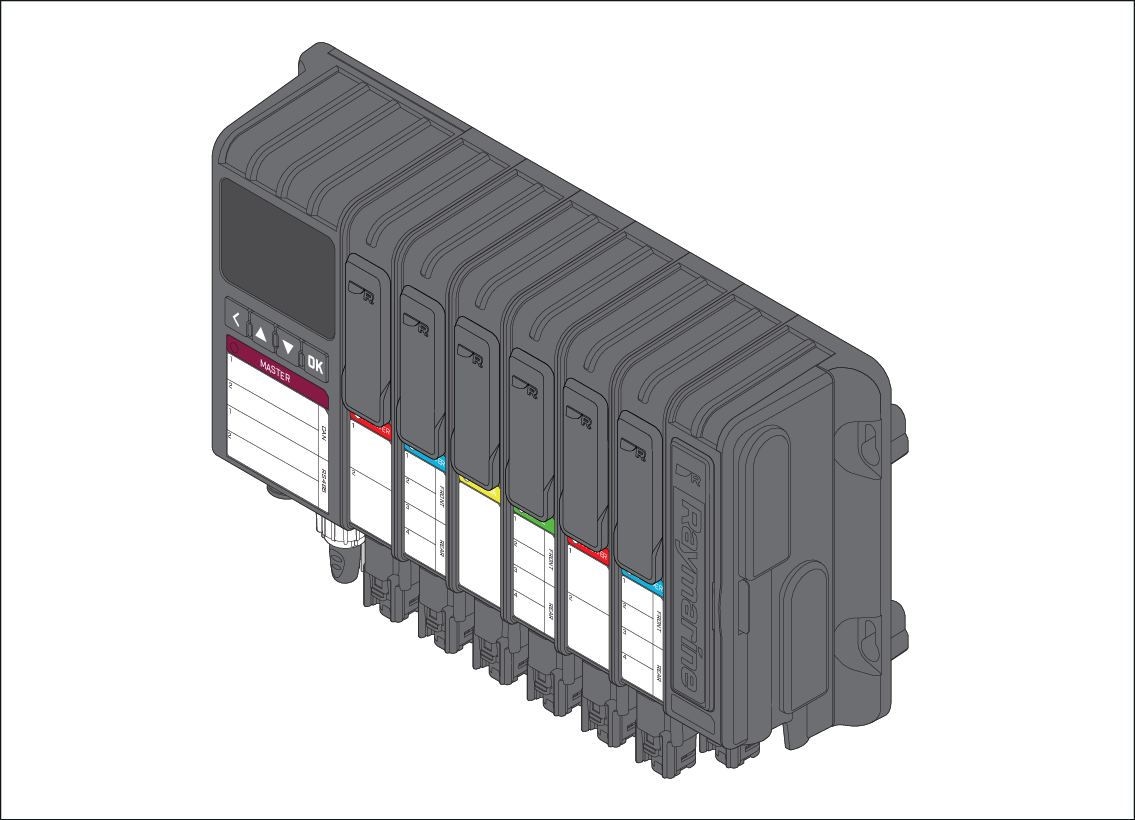

The YachtSense DCS-Series Digital Control System provides digital monitoring and control of vessel electrical systems.

Product overview

Features:

  • Control and monitor supported J1939 and RS-485 OEM smart devices such as air conditioning units and chillers.

  • Control devices such as wipers and dimmable LED lighting etc.

  • Up to 100A current draw for the Master system and for each Remote system.

  • Up to 400 channels per YachtSense DCS-Series Digital Control System.

  • Control and monitoring of high power devices (up to 20A).

  • Control and monitoring of lower power devices (up to 10A).

  • Control reversible motors (up to 20A).

  • Control of digital and analog output signals (up to 200mA).

  • Monitoring of digital and analog input signals.

  • Monitoring of supported SeaTalk NG/NMEA 2000 sensors.

  • Remote control via networked Raymarine chartplotters (MFDs) using the YachtSense DCS-Series app.

  • Remote control via the Raymarine app when a YachtSense Link router is connected. (Requires Premium subscription to the Premium Raymarine app.)

  • Dedicated LCD screen and button controls included on Master and Remote modules for manual override, device diagnostics and channel status.

  • Thermal circuit protection.

  • Hard and soft fused modules.

  • Manual module by-pass.

  • Over voltage power supply protection up to 32 V dc.
