Homescreen overview

All settings and apps can be accessed from the Homescreen.

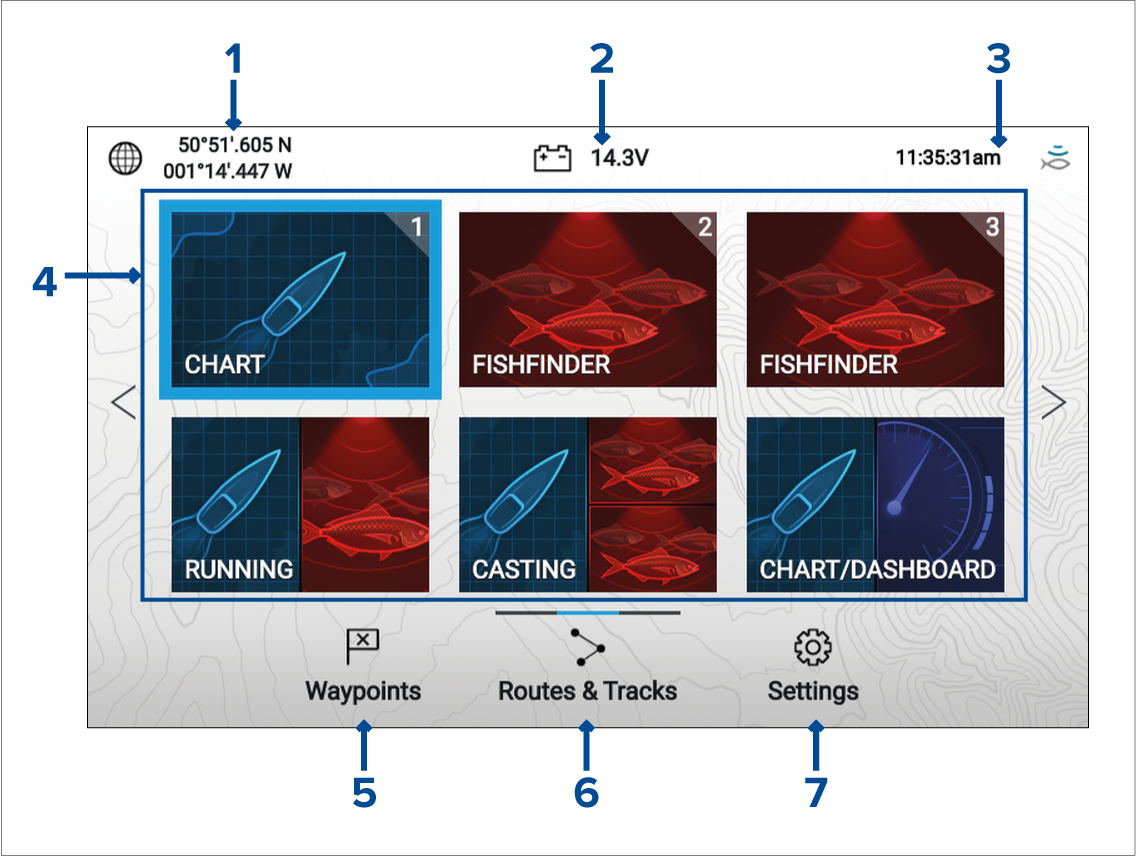

Homescreen

1. Position/fix details — Shows your vessel’s current position coordinates. Select the area to view fix accuracy and to access position settings.

2. Supply voltage — Shows the display’s supply voltage. The Voltage reading is colored Red if the current supply voltage is lower than the value specified in the Low voltage threshold alarm setting: Homescreen > Settings > Alarms > Low voltage threshold.

3. Status area — Displays system time, count down/up timer and sonar ping status. Select the area to set count down / up timer, time zone and to set daylight savings.

4. App page icons — The Homescreen is made up of 3 pages that can each contain up to 6 app page icons. Selecting an app page icon opens the relevant app page.

   To view a different Homescreen page, keep pressing the Directional pad’s Left or Right buttons until the Homescreen page changes. You can identify which Homescreen page is being shown using the indicator bar, located above the Routes & Tracks icon.

5. Waypoints — Select to view the Waypoints list.

6. Routes & Tracks — Select to view the Routes and Tracks lists.

7. Settings — Select to view the display’s Settings menu.
