Available apps

The available Apps are hosted and displayed in App “pages”. Each app “page” can include up to 4 apps, and is represented on the Homescreen by an app page icon. Select an icon to launch the corresponding app page. Pages hosting single apps display the app full screen. Pages hosting multiple apps display the apps in a split-screen layout.

AppsApplicationsThe available apps are:

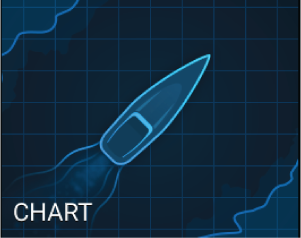

AppsChartChart — The Chart app displays electronic cartographic information from your Chart cards, and when used in conjunction with a GNSS (GPS) receiver, plots your vessel’s position on the display. The Chart app can be used to: mark specific locations using Waypoints, build and navigate Routes; or keep a record of where you have been by recording a visual Track.

For detailed information about the Chart app, refer to: Chart app

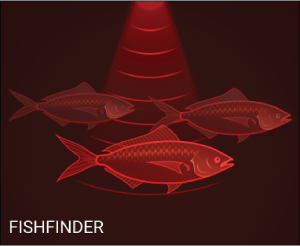

AppsFishfinderFishfinder — The Fishfinder app uses a connected transducer to help you find fish. The app displays an underwater view of bottom structure and targets in the water column covered by your transducer.

Note

  • The channels available in the Fishfinder app are determined by the display variant and connected transducer.

  • The icon used on the homescreen will reflect the fishfinder channel in use.

For detailed information about the Fishfinder app, refer to: Fishfinder app

AppsDashboardDashboard — The Dashboard app provides data readings from connected sensors and devices.

Note

The Dashboard app is only available in split-screen app pages.

For detailed information about the Dashboard app, refer to: Dashboard app

AppsRadarRadar — The Radar app is a situational awareness aid that displays a graphical representation of your surroundings in relation to your vessel using the echo / target returns from a connected Quantum radar scanner. The Radar app allows you to track targets and measure distances and bearings

Note

The Radar app is included in homescreen app page icons when the Radar installed option is enabled in the initial start up wizard. Alternatively, you can add the Radar app to the homescreen manually. For more information on adding new app pages, refer to: Creating a new app page

For detailed information about the Radar app, refer to: Radar app
Note

For more information on adding new app pages, refer to: Creating a new app page
