Automatic Identification System (AIS) support

With compatible AIS hardware connected to your display, AIS targets can be tracked.

AIS equipped vessels that are transmitting their position, and are within range of your vessel, can be represented in the Radar app using AIS target icons.

Note

A maximum of 100 AIS targets can be tracked simultaneously. If there are more than 100 AIS targets within range of your vessel the closest 100 targets will be displayed.

Automatic Identification System AISRadar appAIS targets

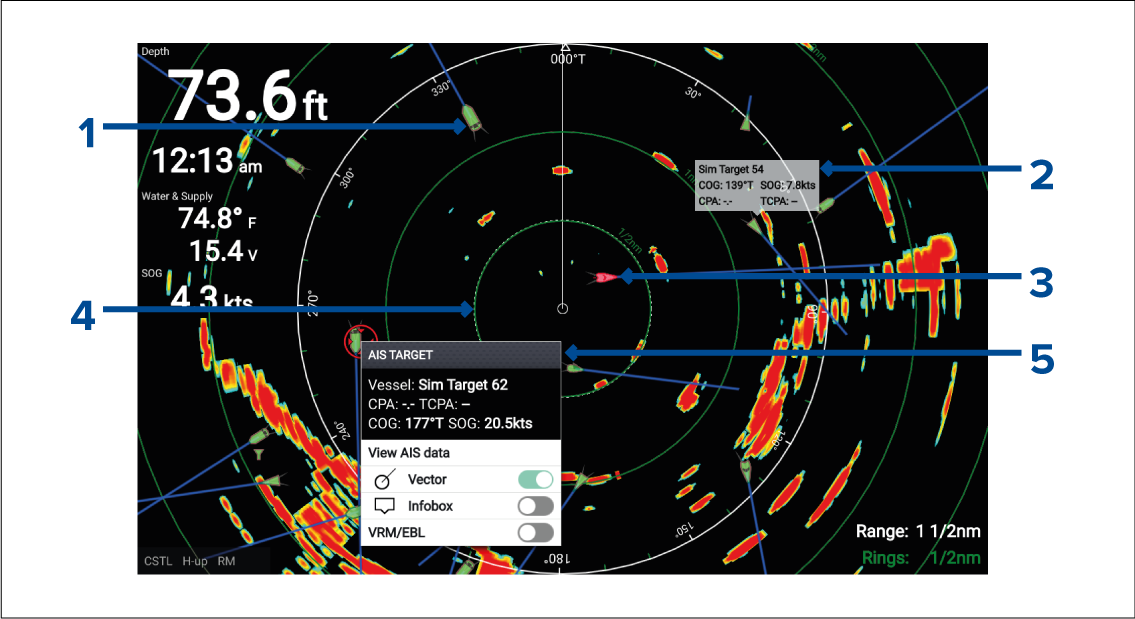

  1. AIS target icon — Example of an AIS target icon.

  2. AIS Infobox — Information can be displayed for each AIS target.

  3. Dangerous AIS target icon — Example of an AIS target icon that is dangerous.

  4. Safe distance ring — A ring can be displayed which represents the dangerous AIS target alarm’s Safe distance.

  5. AIS context menu — The AIS context menu is displayed when an AIS target is selected.
