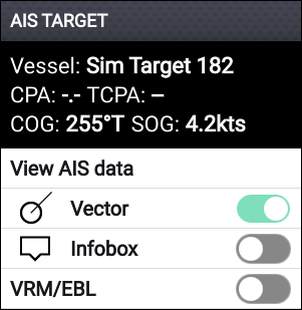

AIS target context menu

The AIS target context menu provides context sensitive data and menu options related to AIS targets.

AISContext menuRadar appAIS context menuContext menuAIS target

  • The AIS target context menu is accessed by highlighting an AIS target onscreen and pressing the OK button.

  • The context menu provides vessel name or MMSI, CPA and TCPA, if available, COG and SOG data.

  • The following menu options are available:

    • View AIS data (displays more detailed AIS data on a fullscreen page)

    • Vector (enables and disables display of the AIS target vector)

      Vector is a global setting and applies to both the Radar app and Chart app.

    • Infobox (displays the AIS data that is shown in the context AIS target context menu onscreen, next to the AIS target)

    • VRM/EBL (allows creation of a Variable Range Marker / Electronic Bearing Line)
