Secondary handset station (Ray63 / Ray73 only)

The Raymic handset accessory can be connected to the Secondary station connector located on the rear of the radio, this will create a second fully functional station.

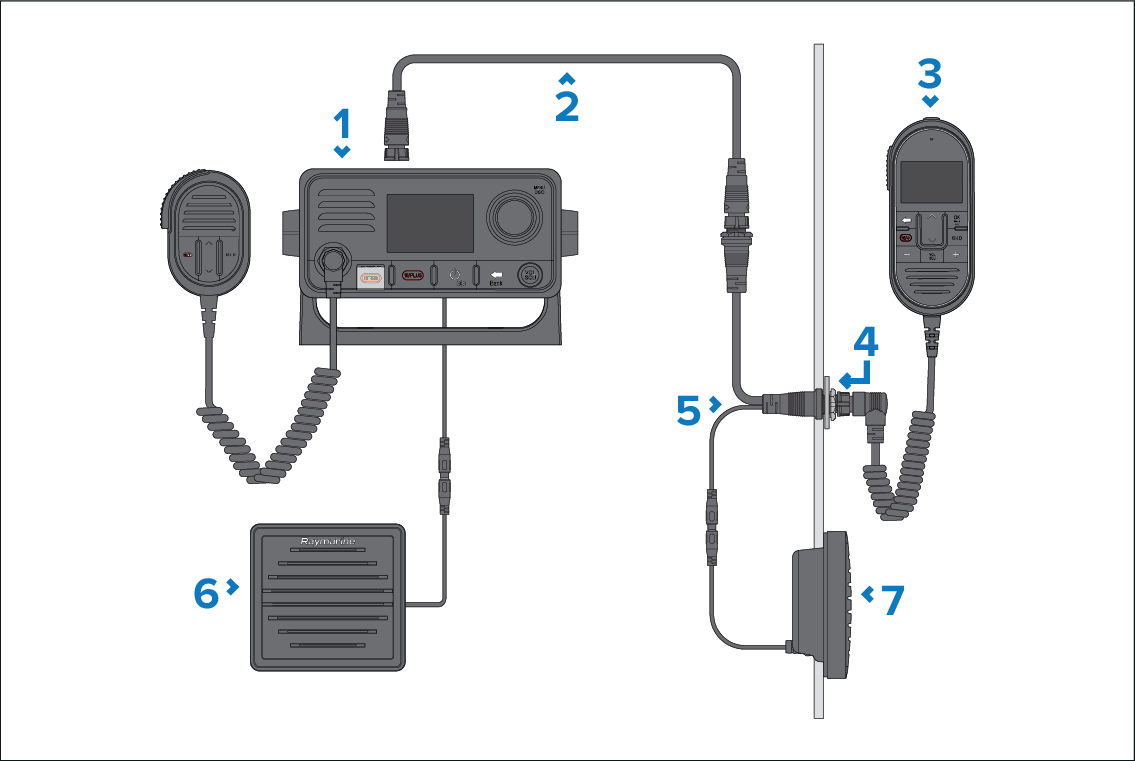

ConnectionsSecondary stationRaymic handset

  1. Primary station (Radio base station).

  2. Handset extension cable (A80290, A80291 or A80292).

  3. Secondary station handset (A80289).

  4. Panel mount fixings kit (R70438).

  5. Handset adaptor cable with RCA audio (A80297).

  6. Primary station passive speaker (A80542).

  7. Secondary station passive speaker (A80542).

CAUTION

The Fistmic must NOT be used to create a second station, as the operator will not have access to all Radio functions or the information displayed on the Radio’s LCD screen.
