Wireless hub connection (Ray63 / Ray73 only)

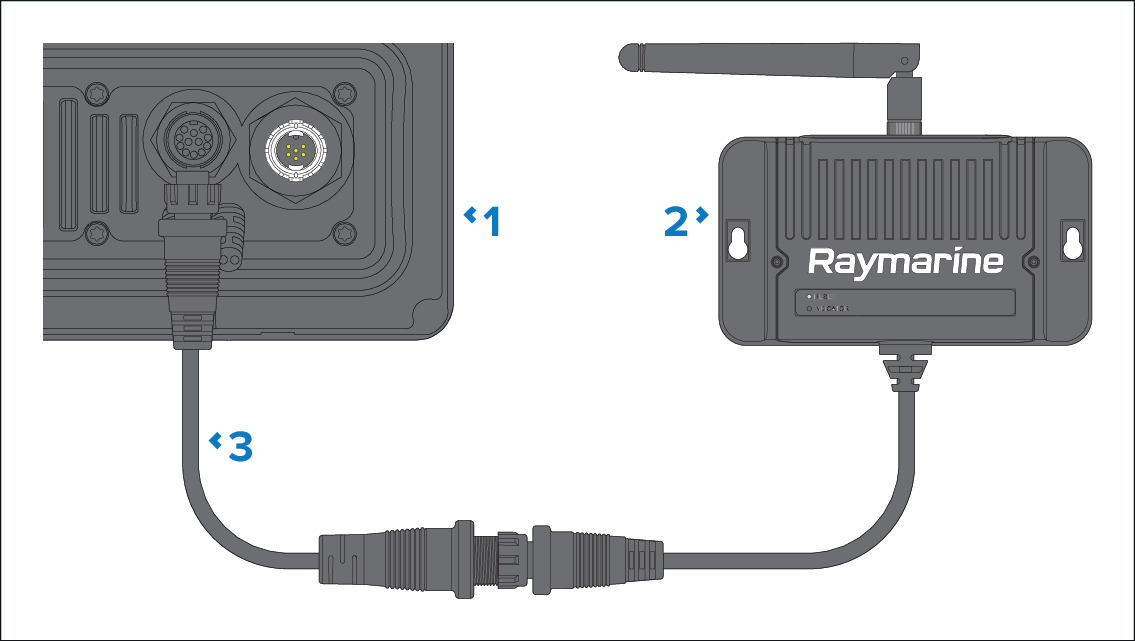

The Wireless hub connects to the second station connector on the rear of the Ray63 / Ray73 radios using the Wireless hub adaptor. The Wireless hub allows connection of wireless handset stations.

1. Ray63 / Ray73 VHF radio.

2. Wireless hub A80540.

3. Wireless hub adaptor (R70739).
