Fistmic connection (Ray63 / Ray73 only)

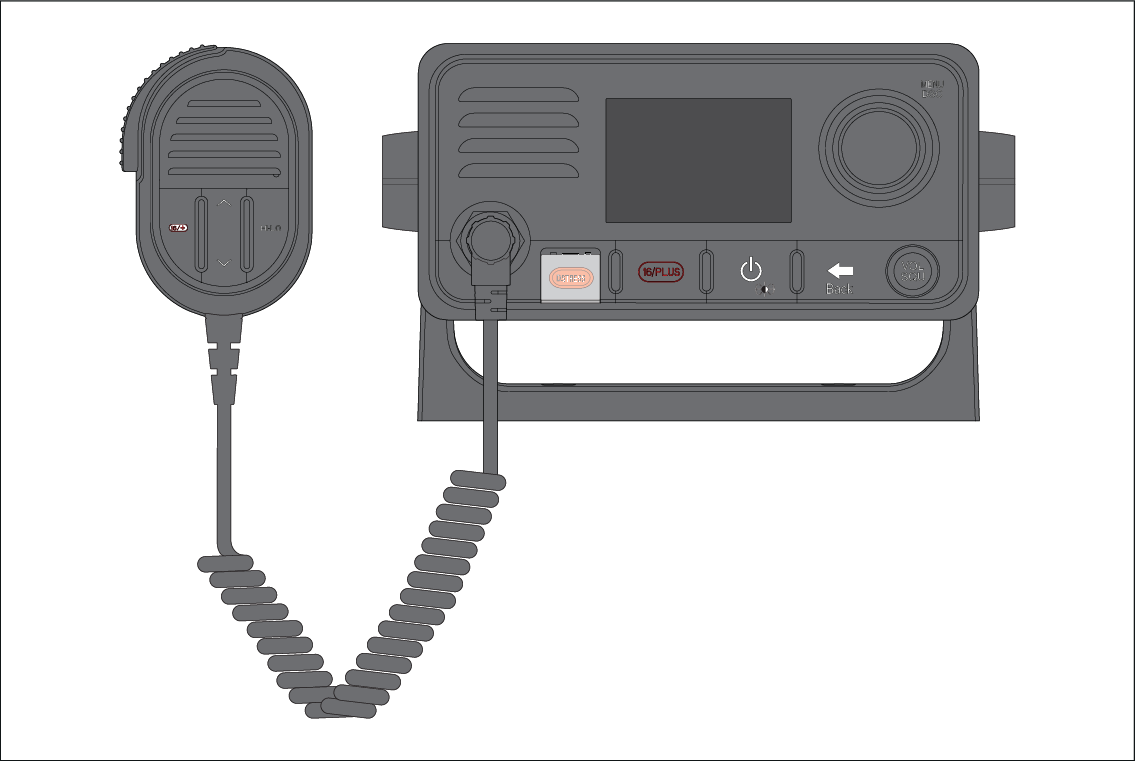

The Fistmic can be connected directly to the front connector on your Radio.

ConnectionsFistmic (Front)

Figure 1. Front connection

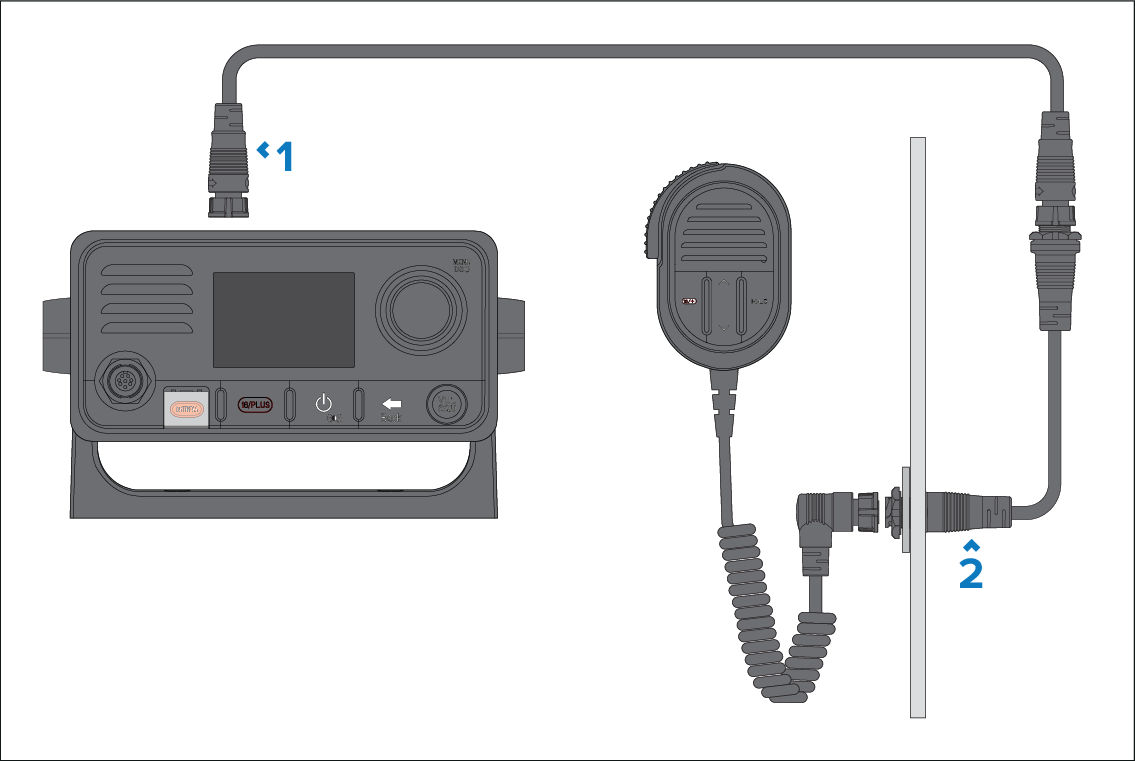

The Fistmic can also be connected to the Rear station connection using the appropriate adaptor cables.

ConnectionsFistmic (Rear)

  1. Handset extension cable (A80291)

  2. Fistmic adaptor cable (A80296)

CAUTION

The Fistmic must NOT be used to create a second station, as the operator will not have access to all Radio functions or the information displayed on the Radio’s LCD screen.
