Product dimensions — speakers

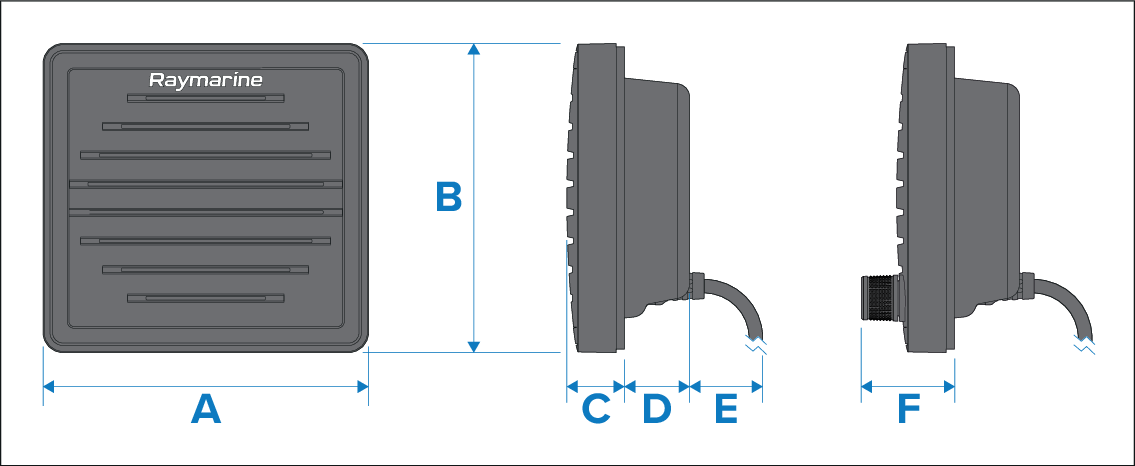

The dimensions for the Passive and Active speakers are shown below.
DimensionsPassive speakerActive speaker
Dimension |
|
|---|---|
A |
118.50 mm (4.67 in) |
B |
112.5 mm (4.43 in) |
C |
18.30 mm (0.72 in) |
D |
26.40 mm (1.04 in) |
E |
25.00 mm (0.98 in) |
F |
30.60 mm (1.20 in) |
Note
The Passive speaker includes a fitted 2 m (6.56 ft) audio cable terminated with a male RCA plug.
The Active speaker includes a fitted 2 m (6.56 ft) power cable terminated with spade connectors.
