Product dimensions — Wireless hub

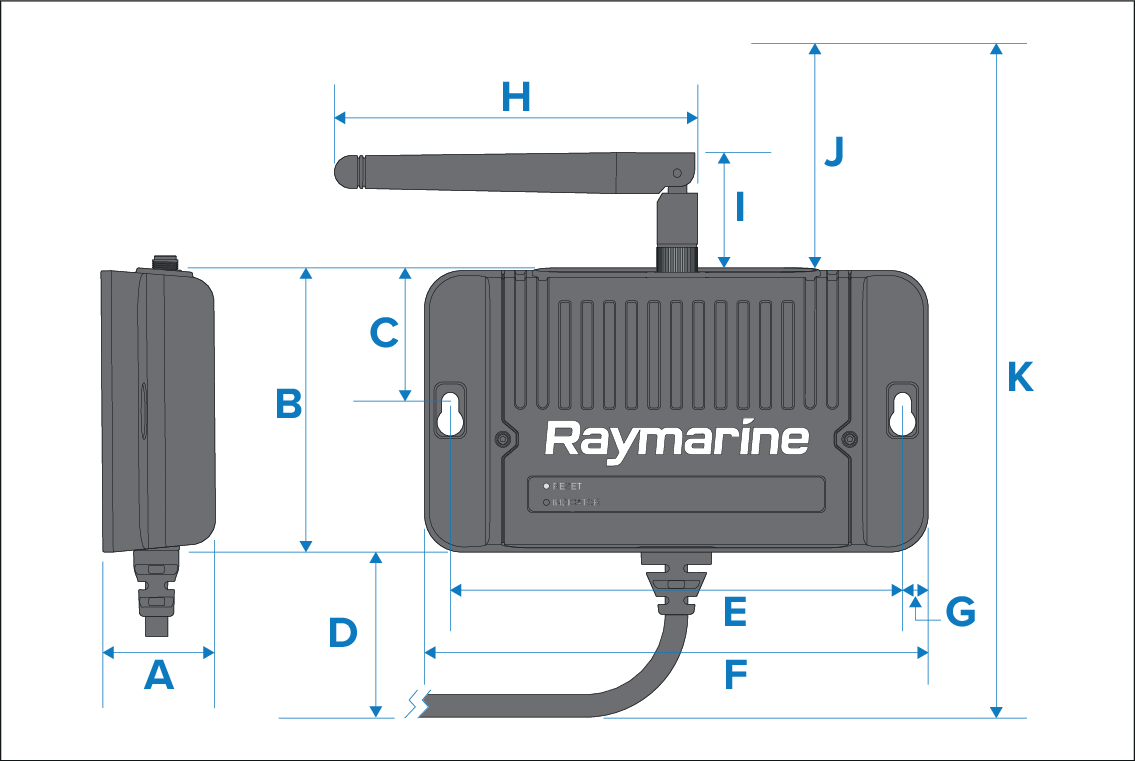

The dimensions for the wireless hub are shown below.
DimensionsWireless hub
Dimension |
|
|---|---|
A |
26.70 mm (1.05 in) |
B |
68.04 mm (2.68 in) |
C |
32.16 mm (1.27 in) |
D |
70.00 mm (2.76 in) |
E |
109.20 mm (4.30 in) |
F |
121.60 mm (4.79 in) |
G |
6.20 mm (0.24 in) |
H |
87.72 mm (3.45 in) |
I |
29.14 mm (1.15 in) Min |
J |
106.95 mm (4.21 in) Max |
K |
244.99 mm (9.65 in) |
Note
The Wireless hub includes a fitted 5 m (16.4 ft) cable for connection to your VHF Radio.
If the installation requires the cable to be passed through a bulkhead or panelling, a 20 mm (0.79 in) diameter hole is required to allow the connector to pass through.
