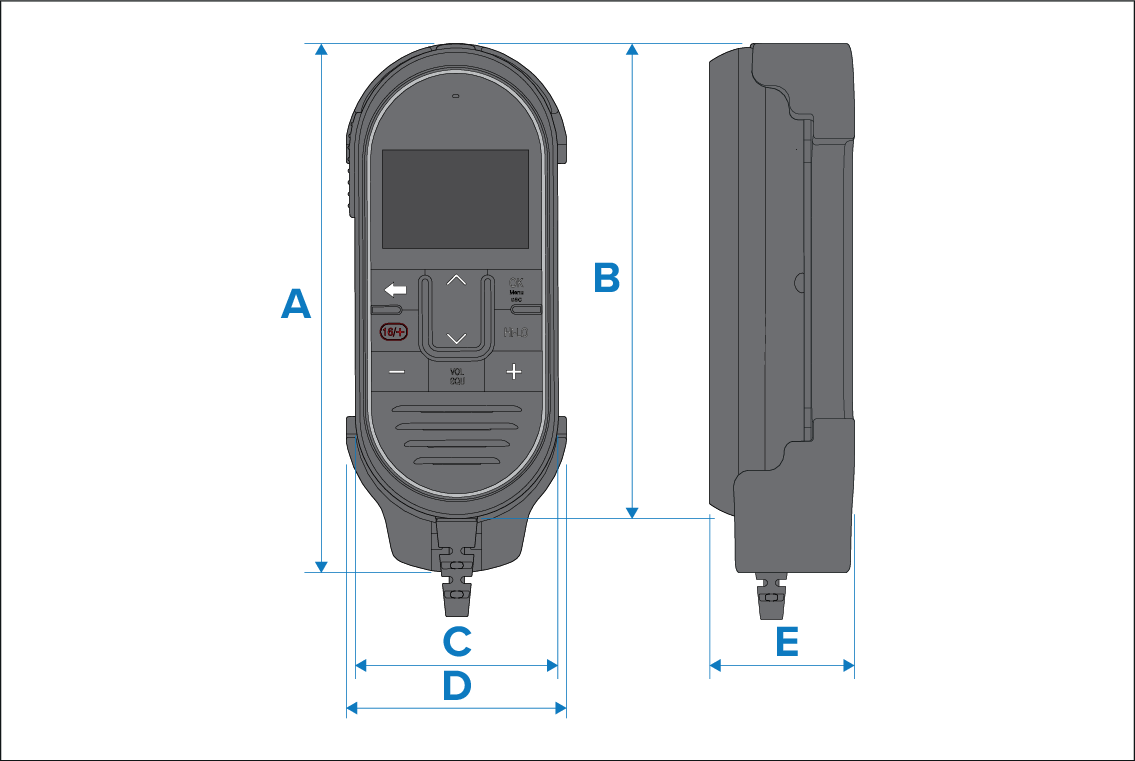

Product dimensions — Wired handset (Raymic)
DimensionsWired handsetRaymic
Dimension |
|
|---|---|
A |
167.34 mm (6.59 in) |
B |
151.00 mm (5.94 in) |
C |
66.90 mm (2.63 in) |
D |
70.00 mm (2.76 in) |
E |
46.70 mm (1.84 in) |
Note
The Handset’s fitted, coiled lead can be extended to approximately 1 meter (3.3 ft.). Ensure sufficient space is available below the desired mounting area to accommodate the cable.
