Passive speaker connection

    81381 - Rev 9 - en-US

    Passive speaker connection

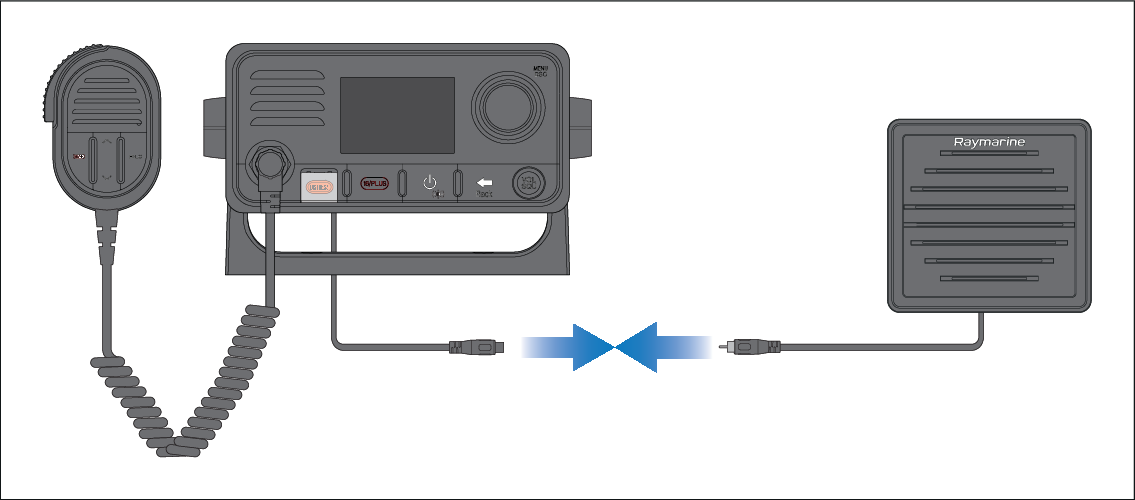

    A passive speaker (A80542) can be connected using the RCA lead on the radio or on the handset adaptor cable.

    ConnectionsPassive speaker
