Wired and wireless speaker mounting

Before mounting, ensure that your selected location meets the location requirements found in this document.

MountingWired speakerWireless speaker

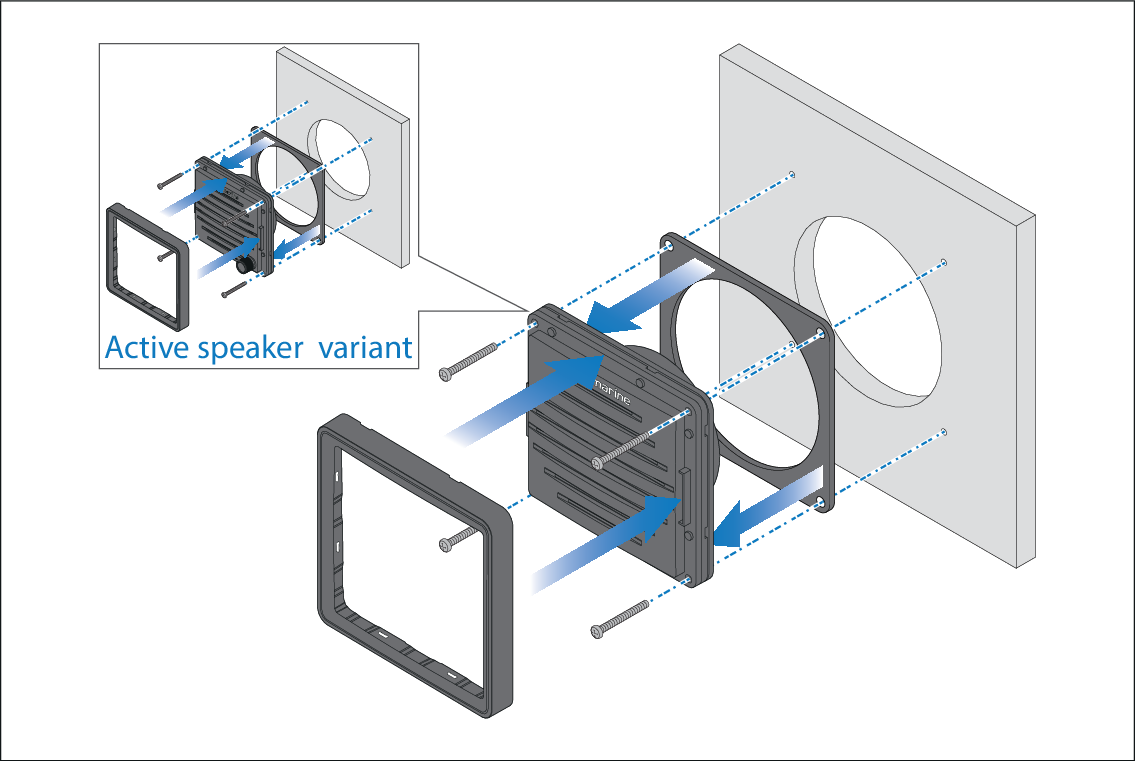

  1. Remove the speaker’s bezel.
  2. Using the supplied mounting template, mark the location of the cut out and fixing holes on the mounting surface.
  3. Using a 89 mm (3 ½ in) hole saw, drill out the centre cut out area indicated on the mounting template.
  4. Drill holes for the fixings, using a drill with a suitable sized bit.
  5. Ensure that the unit fits into the removed area and then file around the cut edge until smooth.
  6. Peel the backing off of the supplied gasket and place the adhesive side of the gasket onto the rear of the speaker, pressing firmly onto the flange.
  7. Connect the relevant cable to the speaker.
  8. Slide the speaker into place and secure using the fixings provided.
  9. Fit the Bezel, ensuring it clips into place on all 4 sides.
