Single-camera system connected to a third-party radar with an analog video monitor and JCU
For this system, a device running a Web browser is not required. The camera’s video feed is routed through the power cable’s composite analog video connection to an analog video monitor. Camera control is provided by a Joystick Control Unit (JCU), available separately.

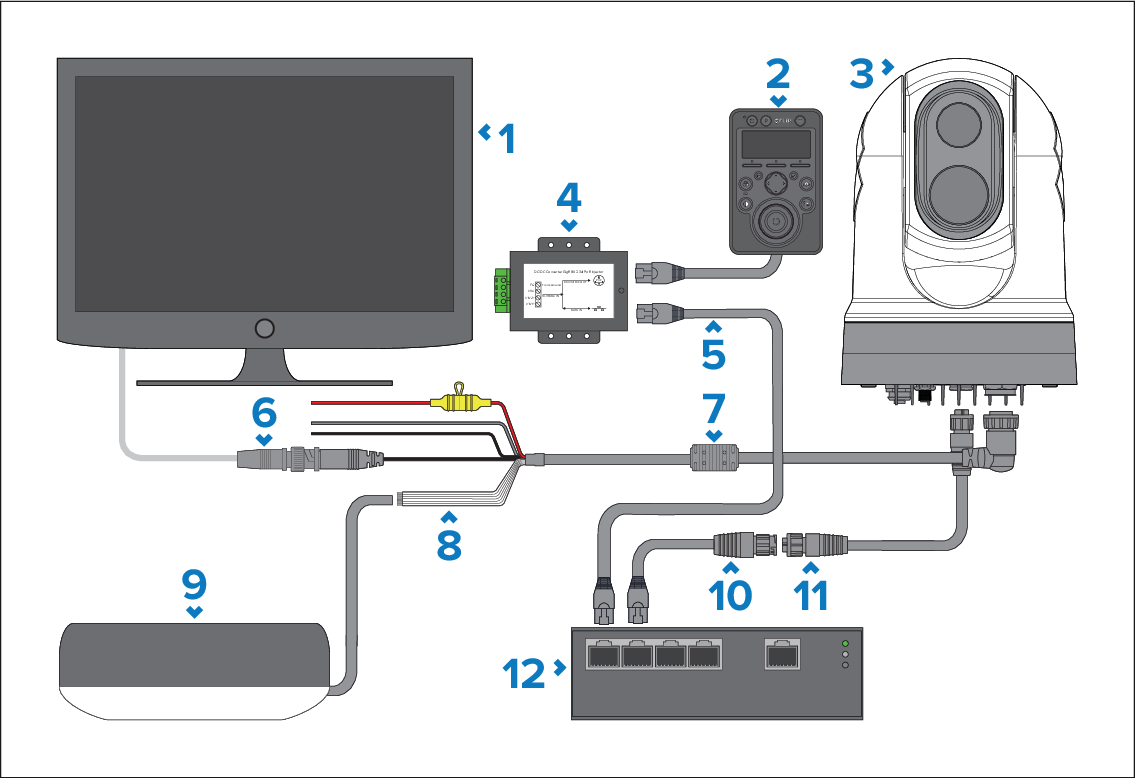

Description |
|
|---|---|
1 |
Analog video monitor, available separately from third-party retailers |
2 |
Joystick Control Unit (JCU-4 currently illustrated), available separately |
3 |
M300-Series camera |
4 |
PSE (Power Sourcing Equipment — e.g. a PoE Injector or PoE network switch) providing PoE (Power over Ethernet) to the JCU-4, available separately |
5 |
RJ45 to RJ45 Ethernet cable, available separately |
6 |
BNC to BNC video cable, available separately. If you are not using the supplied BNC cable (3 m / 9.8 ft.) for the HD-SDI connection, you can use it for this composite analog connection. Otherwise, obtain a suitable cable, separately from third-party retailers. |
7 |
Camera’s power cable (3 m / 9.8 ft.), 1x supplied with camera |
8 |
NMEA 0183 connection. For information on how to connect NMEA 0183 devices to the camera, refer to: NMEA 0183 connection |
9 |
Third-party Radar scanner, available separately from third-party retailers |
10 |
RayNet (Ethernet) to RJ45 adapter cable (100 mm (3.9 in)), 1x supplied with camera |
11 |
RayNet (Ethernet) to RayNet (Ethernet) cable, available separately |
12 |
Ethernet network switch, available separately |
