Single-camera system with direct connection to a Web browser

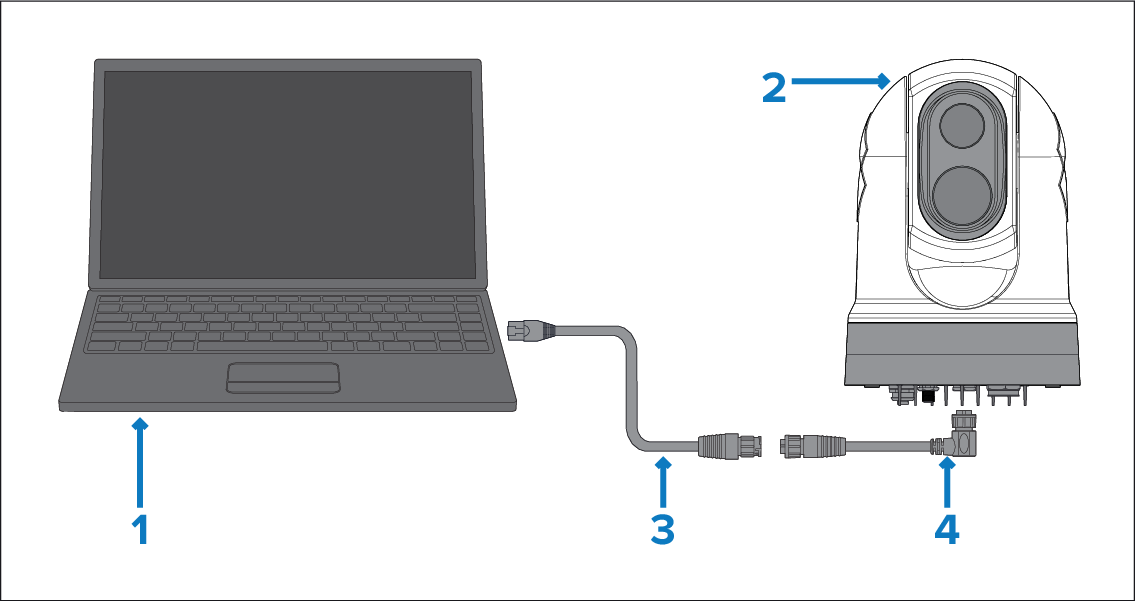

The network connection scenario illustrated below is primarily intended for configuration and diagnostic purposes.
Description |
|
|---|---|
1 |
Laptop (or another Ethernet-connected device running a Web browser), available separately from third-party retailers |
2 |
Camera |
3 |
RayNet (Ethernet) to RJ45 adapter cable (100 mm (3.9 in)), 1x supplied with camera |
4 |
Right angled RayNet (Ethernet) to RayNet (Ethernet) cable (3 m (9.8 ft.)), 1x supplied with camera |
