NMEA 0183 connection

NMEA 0183 devices can be connected to your camera using the supplied Power / Video / NMEA 0183 cable. The camera has the following NMEA 0183 ports:

  • Port 1: Input and output: 4,800 baud rate only.

  • Port 2: Input only: 4,800 baud rate only.

Note

  • For Port 1, both the input and output communicate at the same baud rate. For example, if you have one NMEA 0183 device connected to the camera’s Port 1 INPUT, and another device connected to the camera’s Port 1 OUTPUT, both devices must use the same baud rate.

ConnectionsNMEA 0183NMEA 0183Baud rateNMEA 0183 connection

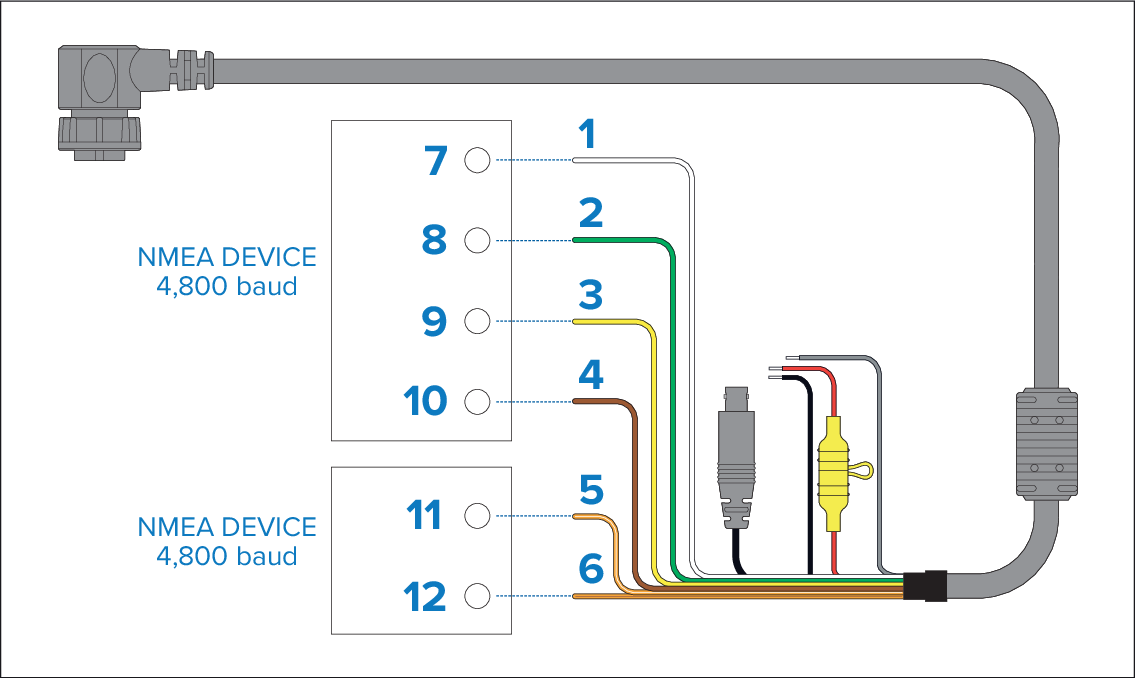

Up to 4 devices can be connected to the camera's NMEA output; up to 2 devices to the camera's NMEA inputs:

Device Cable color Port Input / output (+) / (-)

1

Camera

White

1

Input

Positive (+)

2

Green

1

Input

Negative (-)

3

Yellow

1

Output

Positive (+)

4

Brown

1

Output

Negative (-)

5

Orange / White

2

Input

Positive (+)

6

Orange / Green

2

Input

Negative (-)

7

NMEA device

*

*

Output

Positive (+)

8

*

*

Output

Negative (-)

9

*

*

Input

Positive (+)

10

*

*

Input

Negative (-)

11

NMEA device

*

*

Output

Positive (+)

12

*

*

Output

Negative (-)
Note

* For connection details, refer to the instructions provided with your NMEA 0183 device.
