Display options

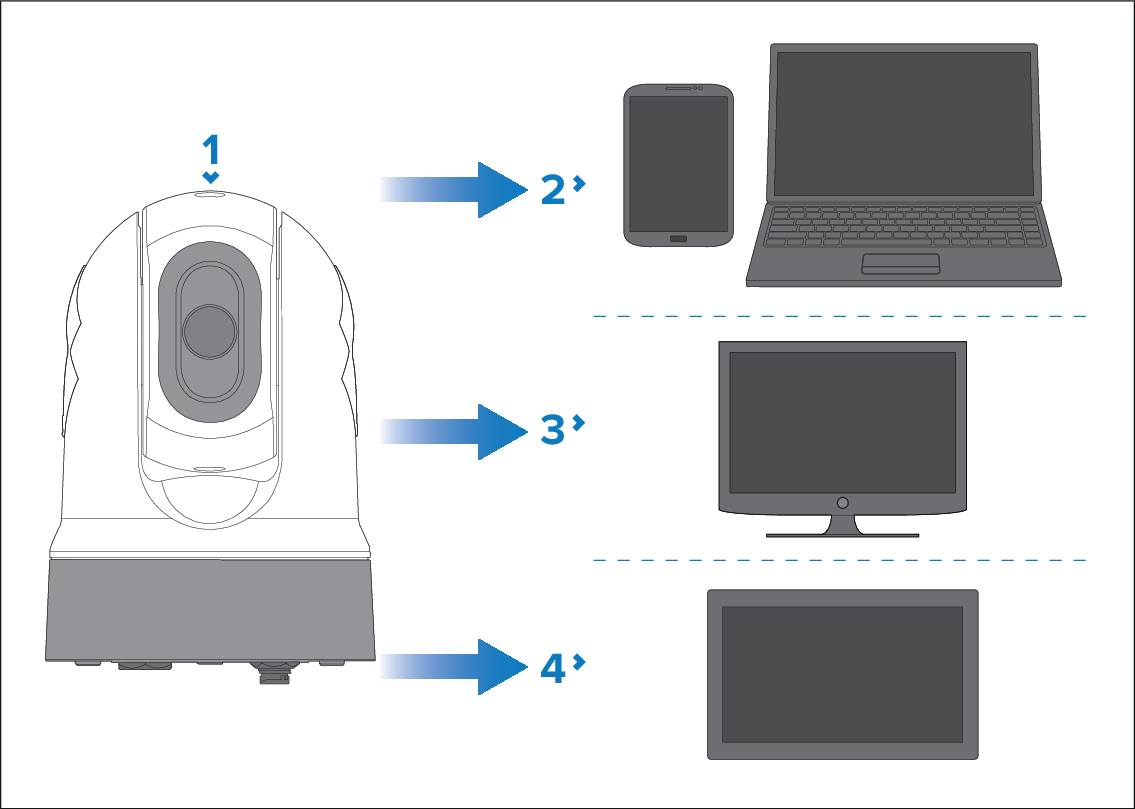

The following illustration shows the different options available for displaying the camera’s video feeds.

Display options

For more information on the video connection, refer to: Video connections

Note

This illustration does NOT include any cables or accessories that may be required to connect the products shown. For more information on specific connections, refer to the Connections section.

  1. Camera.

  2. Laptop or another Ethernet device running a Web browser: via an Ethernet connection.

  3. Analog video monitor: via an IP video decoder (available separately from a third-party retailer).

  4. Compatible MFD / chartplotter: via an Ethernet connection.
