Video connections

Details of the video output available via the camera’s RayNet (Ethernet) connector.

Connectionsvideo

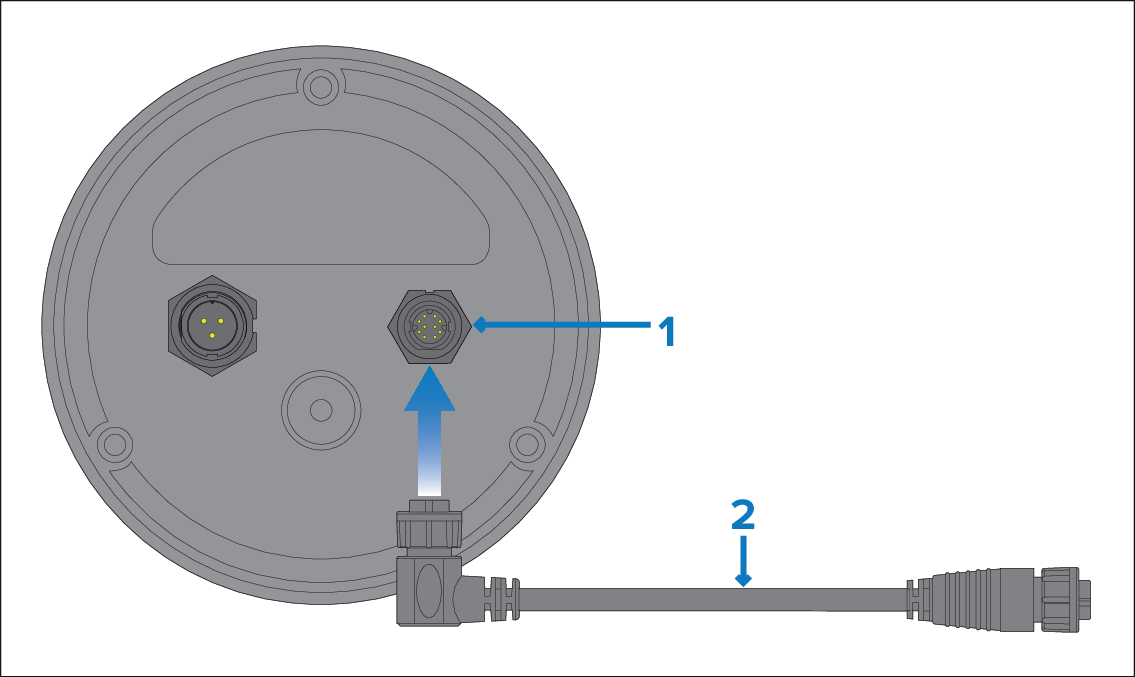

  1. Network connector — provides IP streaming video and camera control, over a RayNet (Ethernet) connection. For more information on the devices you can connect to for camera control and video display, refer to: Product and system overview

  2. Right-angled RayNet (Ethernet) cable, 10 m (32.8 ft.), supplied.

For the IP video encoding format and resolution supported by the camera, refer to: Video specification

Note

It is also possible to convert the IP digital video stream to an analog video signal for displaying the camera’s video feed on an analog video display, by using a suitable IP video decoder (available separately from third-party retailers).
