Control options

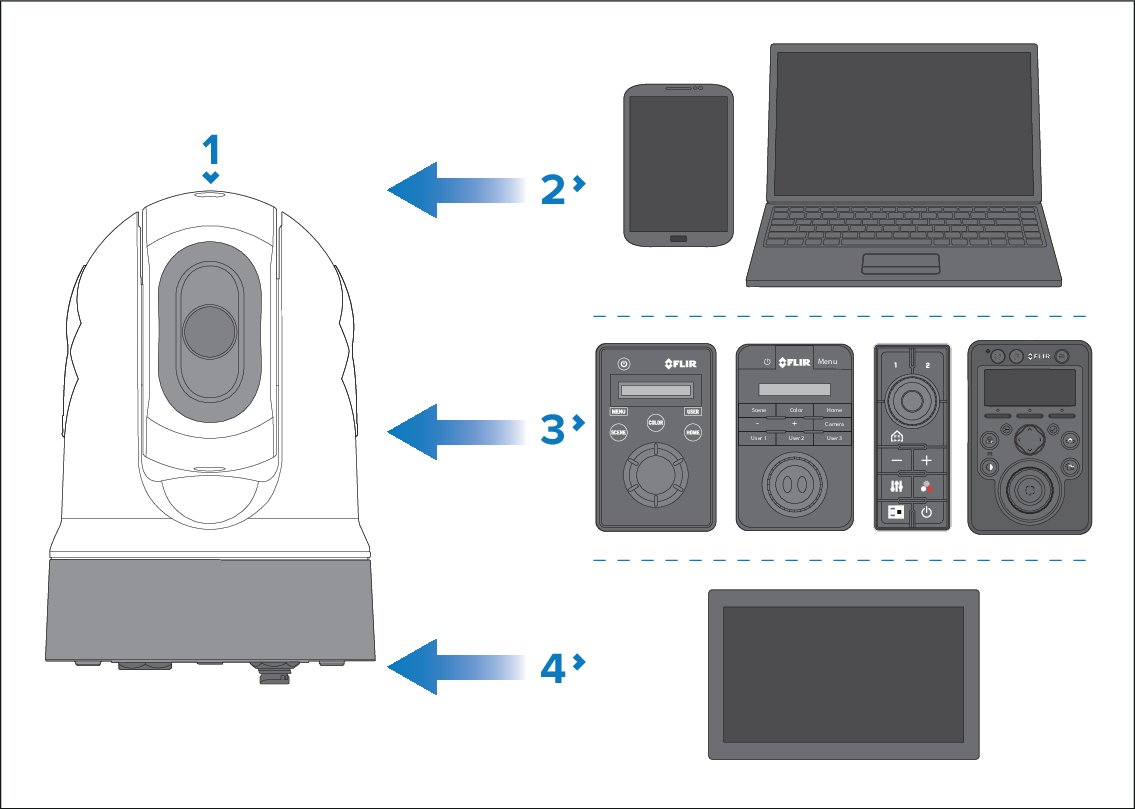

The following illustration shows the different options available for controlling the camera.

Control options

These options are not exclusive; the camera can be controlled from more than one device.

Note

This illustration does NOT include any cables or accessories that may be required to connect the products shown; it is simply an overview of control options. For more information on specific connections, refer to the Connections section.

  1. Camera.

  2. Laptop or another Ethernet device running a Web browser, via an Ethernet connection.

  3. Compatible Joystick Control Unit (JCU), via an Ethernet connection.

  4. Compatible MFD / chartplotter, via an Ethernet connection.
