Product overview

The M100 / M200–Series is a maritime thermal imaging system for use on nearly any kind of vessel. It provides a clear image in low-light and no-light conditions. For example, a thermal camera can help you navigate at night or identify obstacles in areas of low visibility or even total darkness.

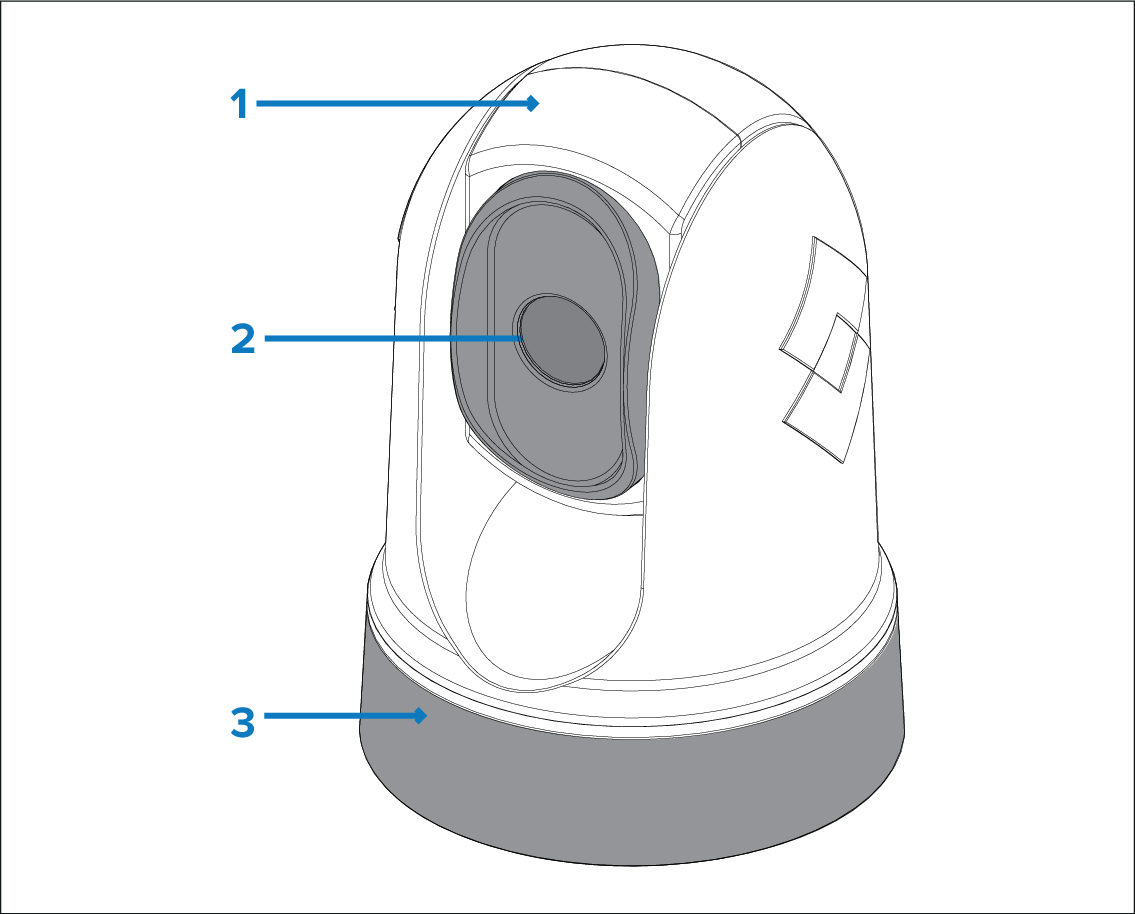

  1. Tilt assembly.

  2. Thermal camera lens window.

  3. Pan assembly (fixed position for M100-Series cameras).

M100 / M200-Series cameras have the following key functions and features:

  • IP connectivity to simplify installation and system integration.

  • H264-encoded IP video stream (convertible to analog NSTC / PAL composite video, via an optional IP video decoder; available separately from third-party retailers).

  • Pan and tilt operations (tilt only for M100-Series) via dedicated Joystick Control Unit (JCU), multifunction display (MFD), or web browser.

  • Automatic camera adjustment to suit changing conditions.

  • Preset modes (Scenes) optimized for prevailing conditions.

  • Automatic window heaters to de-ice the lens window in cold weather.

  • 12 V or 24 V dc power.
