Tools required (trunnion mount installations)

The following tools are recommended for mounting using a trunnion bracket:

InstallationTrunnion mountingTools requiredMountingTrunnion mountingTools requiredTools required Trunnion mountingBracket mounting

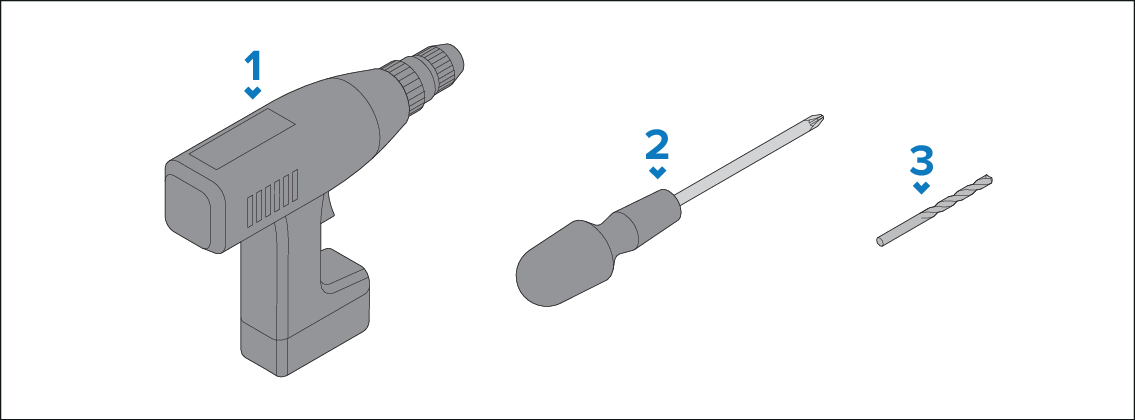

  1. Power drill.

  2. Screwdriver — appropriate for your fixings.

  3. Drill bit — suitable for the material of the mounting surface and the following trunnion bracket mounting hole diameters:

    • Axiom 2 7" display: 4.2 mm (0.17 in).

    • Axiom 2 9" / 12" display: 5.75 mm (0.23 in).
