Preparing the mounting surface — surface mounting

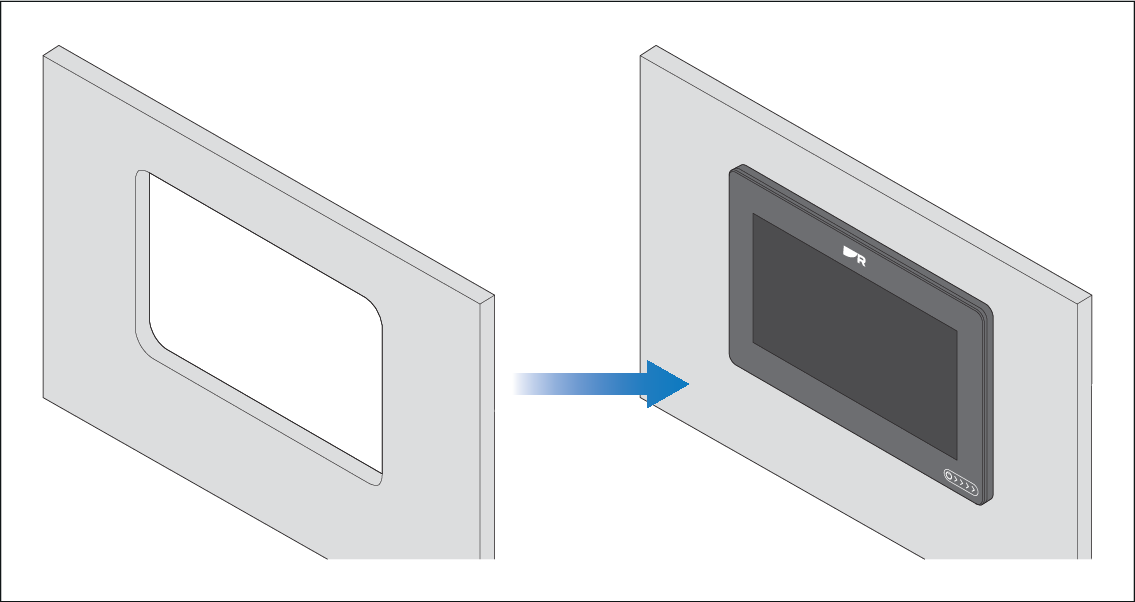

Surface mounting requires one cut-out hole. When the display is surface mounted, the glass / bezel will protrude from the mounting surface.

InstallationSurface mountingMounting surface preparationMountingSurface mountingMounting surface preparationSurface mountingMounting surface preparation

Note

The following procedure is for preparing the mounting surface for surface mount installations. For flush mounting preparation instructions, refer to:

Important

Before preparing the mounting surface, ensure that:

  • Your selected location meets the location requirements. For details, refer to:

  • You have identified cable connections and the route that the cables will take.

Installation Surface mountingSurface mounting

  1. Mark the cut-out line on the mounting surface, as identified on the supplied mounting template.
  2. Use a drill and an appropriate size drill bit or hole cutter to cut out the corners of the Cut-out line.

    The corner diameters for the displays are:

    • 20.00 mm (0.79 in) — 7” and 12” displays.

    • 24.00 mm (0.94 in) — 9” displays.

  3. Use a jigsaw or similar cutting tool to cut out the remainder of the cut-out area.
  4. Use a half-round file and / or sandpaper to smooth and rough edges or burs on the cut-out hole.
