Evolution-Series recommended system example (ACU-100 / ACU-150)

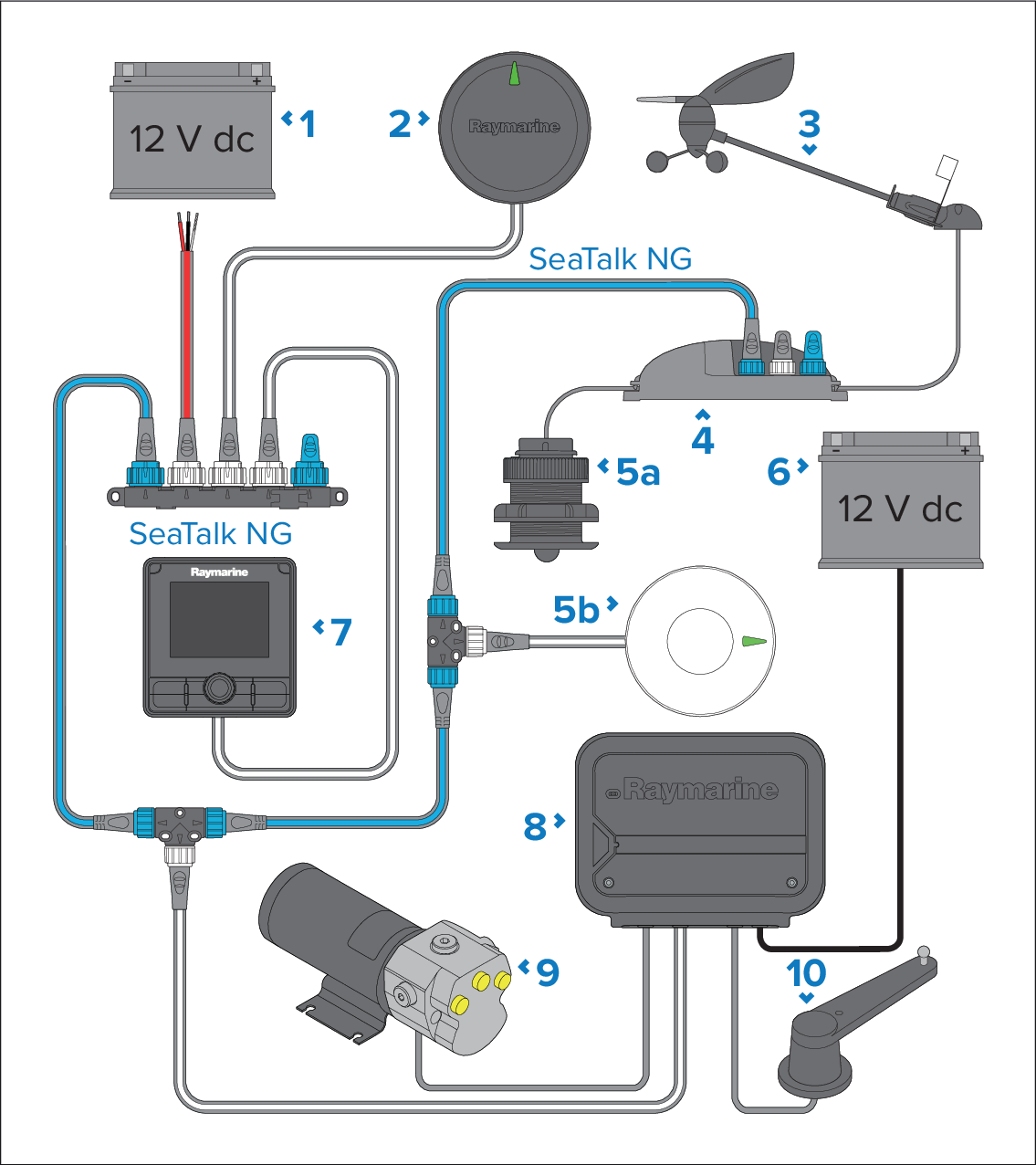

The following example provides an overview of a recommended system, including the available connections and types of devices that can be connected to your system when an ACU-100 or ACU-150 is present.

ConnectionsNetwork connectionsRecommended system exampleACU-100 / ACU-150

  1. 12 V dc power supply (providing power to SeaTalk NG backbone).

  2. EV-1 sensor.

  3. Wind transducer (only required for Sailing vessels).

  4. iTC-5 converter.

  5. Speed data source:

    1. Speed transducer (providing STW data), or

    2. GNSS (GPS) Receiver (providing SOG data).

  6. 12 V dc power supply (providing power to the ACU-100 / ACU-150).

  7. Autopilot controller (p70Rs shown).

  8. ACU-100 / ACU-150.

  9. Drive unit (hydraulic pump shown).

  10. Rudder angle reference sensor / transducer (M81105).
