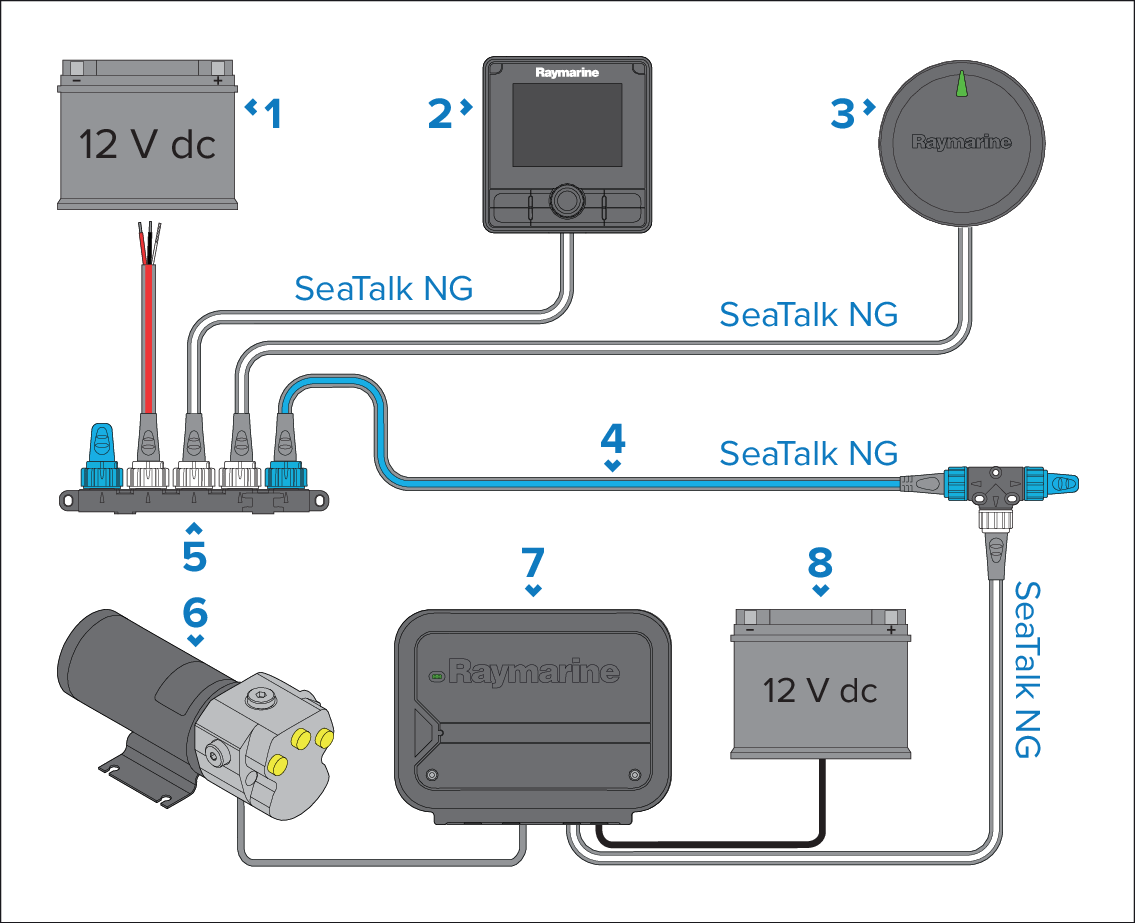

Evolution-Series minimum system example (ACU-100 / ACU-150)

The following example provides an overview of an Evolution-Series minimum system, including the available connections and types of devices that must be connected to your Evolution-Series system when an ACU-100 or ACU-150 is present.

ConnectionsNetwork connectionsMinimum system exampleACU-100 / ACU-150

Note

A rudder angle reference sensor / transducer is a highly recommended system component (not shown in the drawing above, but available separately as M81105).

  1. 12 V dc power supply (providing power to the SeaTalk NG backbone).

  2. Autopilot controller (p70Rs shown).

  3. EV-1 sensor.

  4. SeaTalk NG backbone.

  5. SeaTalk NG 5-way block.

  6. Drive unit (hydraulic pump shown).

  7. ACU-100 / ACU-150.

  8. 12 V dc power supply (providing power to the ACU-100 / ACU-150).
