Configuring RSW wind using LightHouse 4 display

The RSW wind transducer can be configured using an Axiom display, running LightHouse™ 4, version v4.6.103 or later.

RSW Wired ConfigurationWind transducer ConfigurationThe RSW wind transducer configuration is initiated from the Network settings menu: Homescreen > Settings > Network

  1. Select the RSW Wired Gateway from the network list.
  2. Select Configure settings from the Pop-over options.

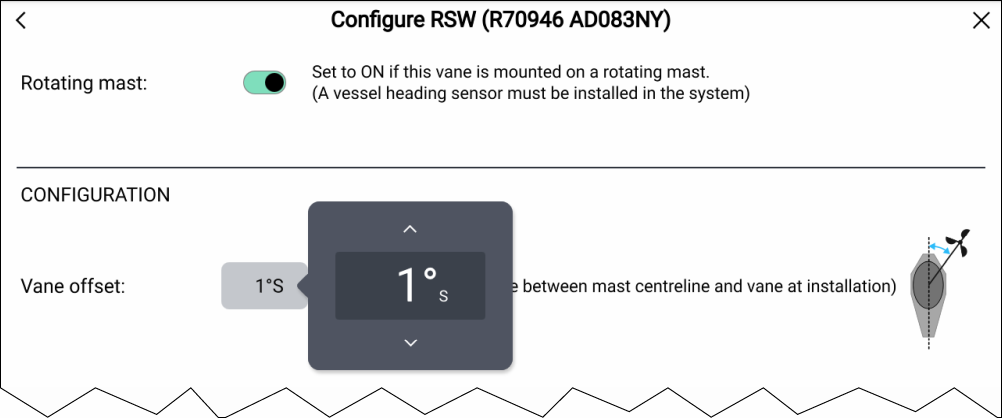

  3. If your vessel has a rotating mast:
    1. Rotating mastEnable the Rotating mast toggle switch.
    2. If applicable, enter the offset value for your transducer.

    • A vessel heading sensor is required for rotating masts.

    • The offset should be measured from the mast’s centerline to the transducer. This may be different from the vessel centerline.

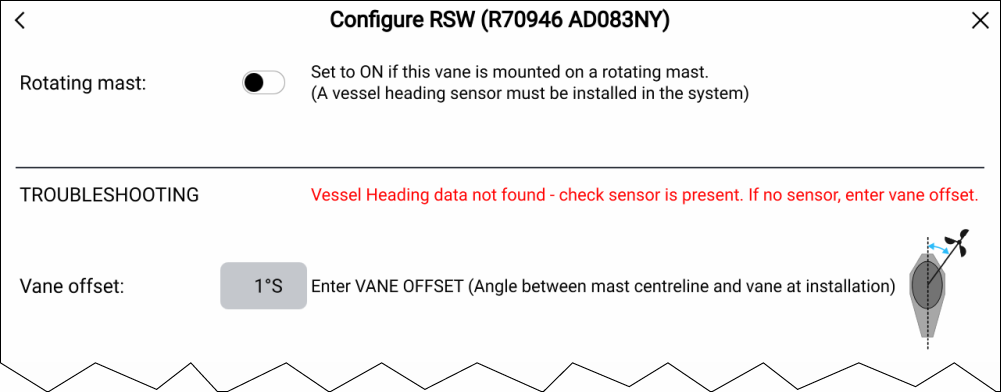

  4. If your vessel does not have a rotating mast and does not have a heading sensor; if applicable, enter the offset value for your transducer.

    • The offset should be measured from the vessel/mast’s centerline to the transducer.

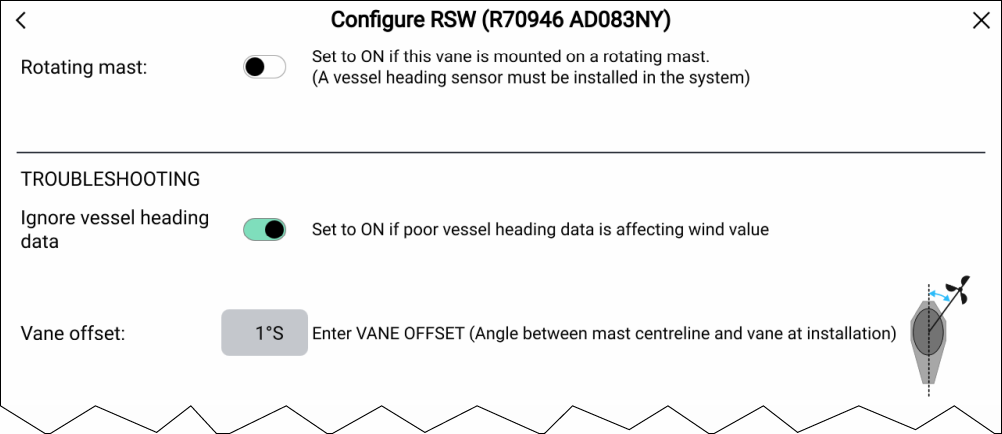

  5. If your vessel does not have a rotating mast but does have a heading sensor, no offset value is required. However, if poor heading data is affecting wind data readings you can enable the Ignore sensor heading data toggle switch and if applicable, enter an offset value for your transducer.
