Tools required

The following tools are required for installation:

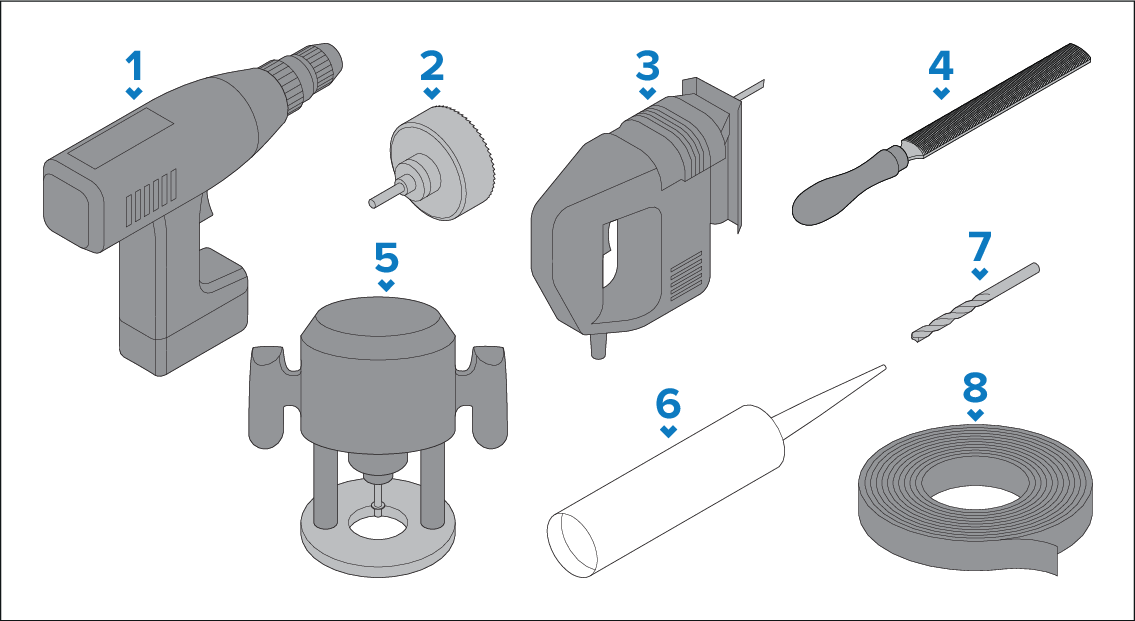

Tools requiredInstallation Tools

  1. Power drill.

  2. Hole cutter of an appropriate size for the 8.00 mm (0.31 in) surface and flush mount corner diameter cutout line, or the 90.94 mm (3.58 in) retrofit / offset mount center diameter cutout line.

  3. Jigsaw.

  4. Half round file (or sandpaper).

  5. * Hand router with a router bit of an appropriate size for the 11.50 mm (0.45 in) corner diameter, required for the flush mount rebate.

  6. Marine grade sealant.

  7. Drill bit.

  8. Masking / self adhesive tape.

Note

* Items are only required when flush mounting the display.
