Mounting options

The performance display can be mounted flush with the mounting surface (flush mount), with the glass protruding from the mounting surface (surface mount), or with the instrument’s body protruding from the mounting surface (retrofit / offset mount).

InstallationMounting optionsSurface mountFlush mountRetrofit / offset mount

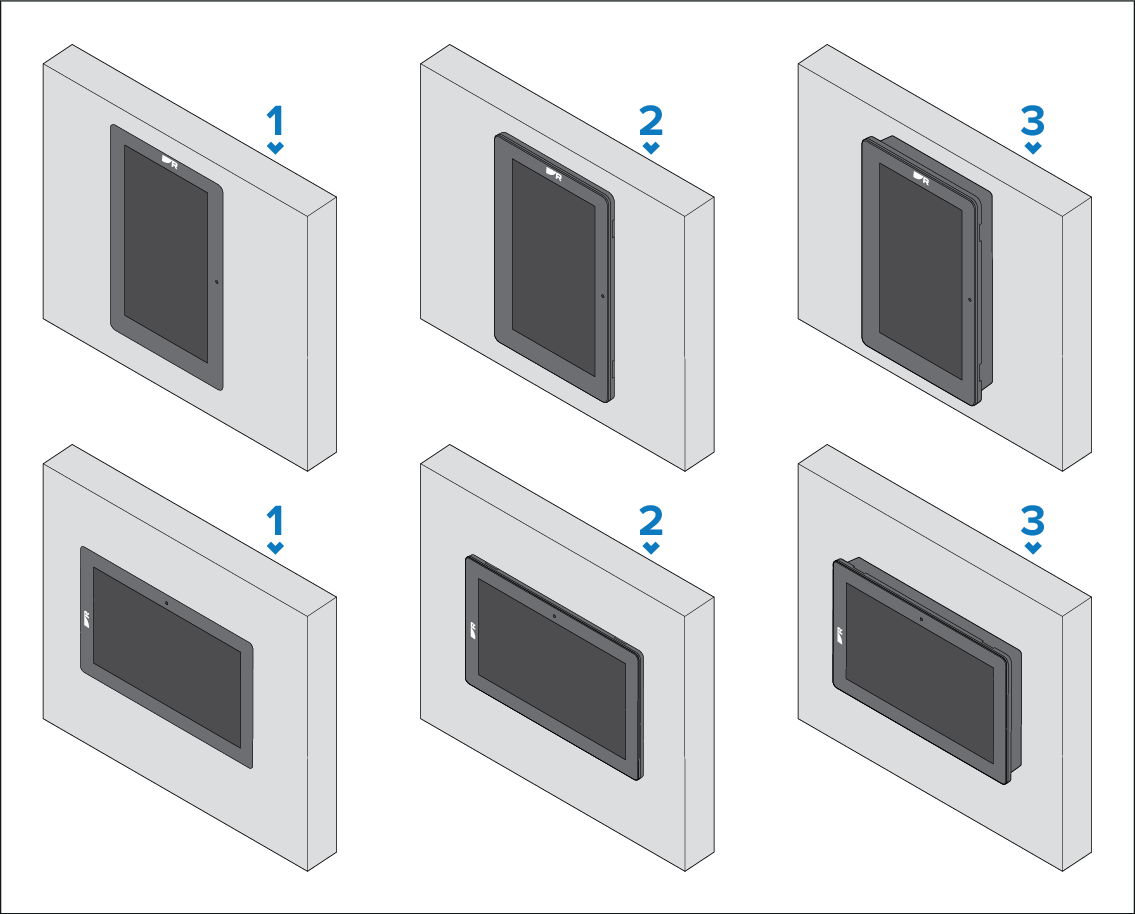

1. Portrait or landscape flush mount.

2. Portrait or landscape surface mount.

3. Portrait or landscape retrofit / offset mount — this is typically used when replacing an existing Raymarine® instrument, such as ST60, ST60+, i50, i60, i70, i70s.
