System overview (example only)

The following illustrations provide an overview of different products which can be connected to and used in conjunction with the performance display.

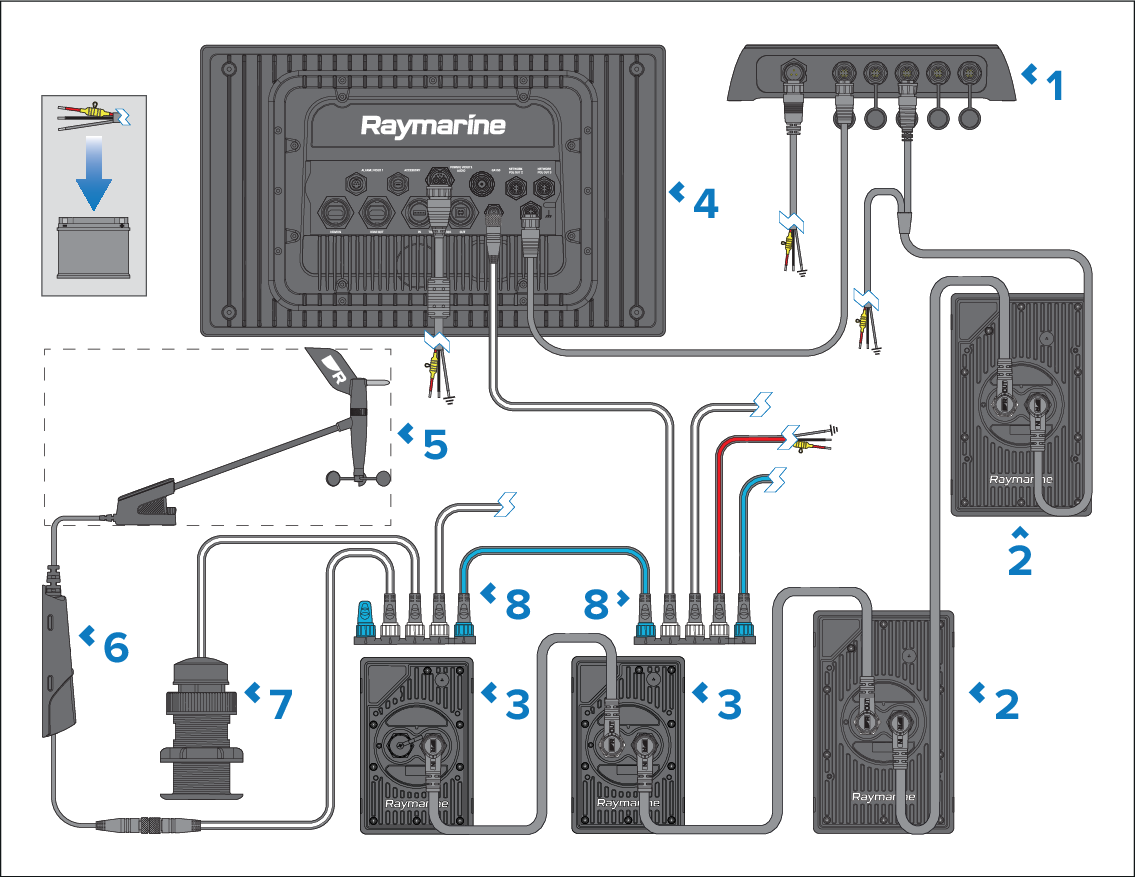

System overview (example only)

Note

  • The system configuration shown is intended as an example only and may differ from your planned installation.

  • Power connections are not shown in this illustration. For power connection information, refer to the following section: Power connections

  1. RNS-5 Network switch.

  2. Alpha 9 performance display.

  3. Alpha 7 performance display.

  4. Axiom 2 XL multifunction display.

  5. RSW-Wired Smart Wind transducer — for more details, refer to: Additional components

  6. NMEA 2000 gateway (supplied with RSW-Wired Smart Wind transducer).

  7. DST810 Thru-Hull transducer.

  8. SeaTalkng® 5–way connector (A06064).
