Non-PoE network connections

Connecting the RNS-8 network switch to Raymarine equipment (e.g. legacy MFDs / chartplotters) via a non-PoE RayNet connector.

Required cabling / connectors:

  • RayNet (female) to RayNet (female) network cable (not supplied).

OR:

  • RayNet (female) to RJ45 (SeaTalk HS) (male) adapter cable (not supplied).

For further information on the cabling required, refer to the following section: RayNet to RJ45 adapter cables

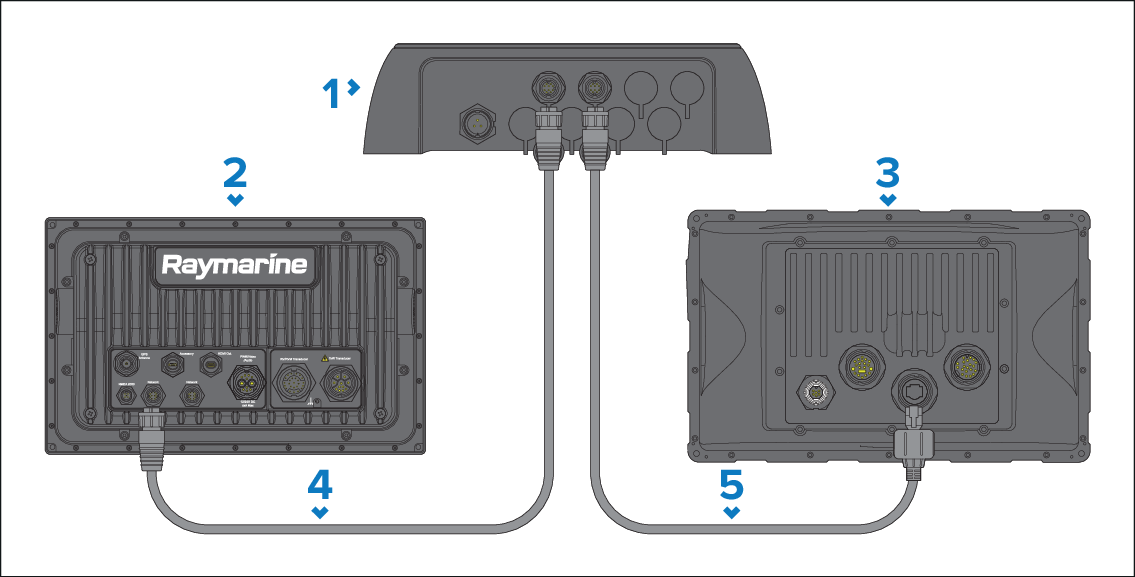

Example: RJ45 (SeaTalk HS) cable connection scenario

Network connectionsNetwork connectionsnon-PoE

Description

1

RNS-8 network switch.

2

RayNet equipment featuring a RayNet connector, such as Axiom series multifunction displays.

3

Legacy SeaTalk HS multifunction display featuring an RJ45 (SeaTalk HS) connector.

4

RayNet (female) to RayNet (female) network cable (not supplied).

5

RayNet (female) to RJ45 (SeaTalk HS) waterproof plug (male) adapter cable (not supplied).
