Typical systems

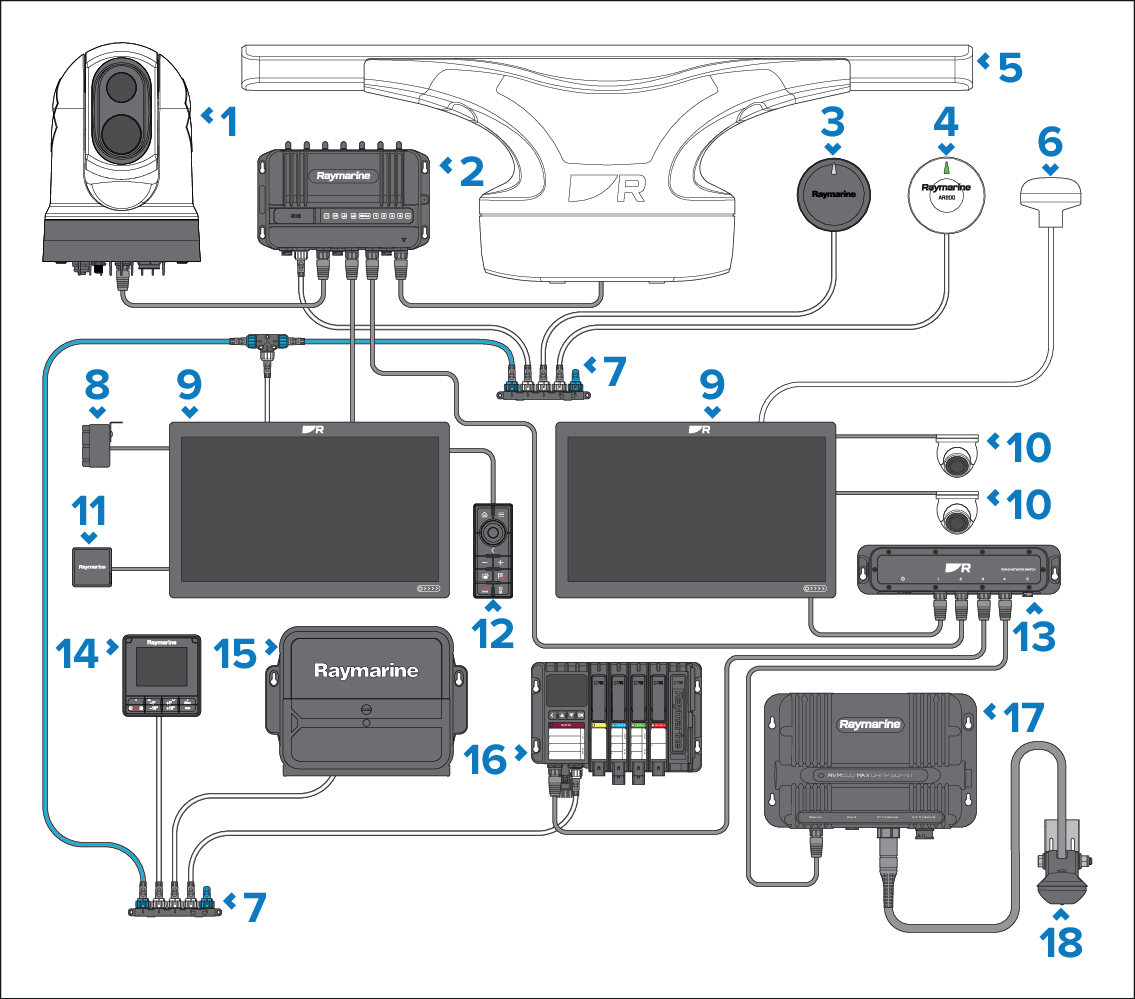

The illustrations show typical system examples.

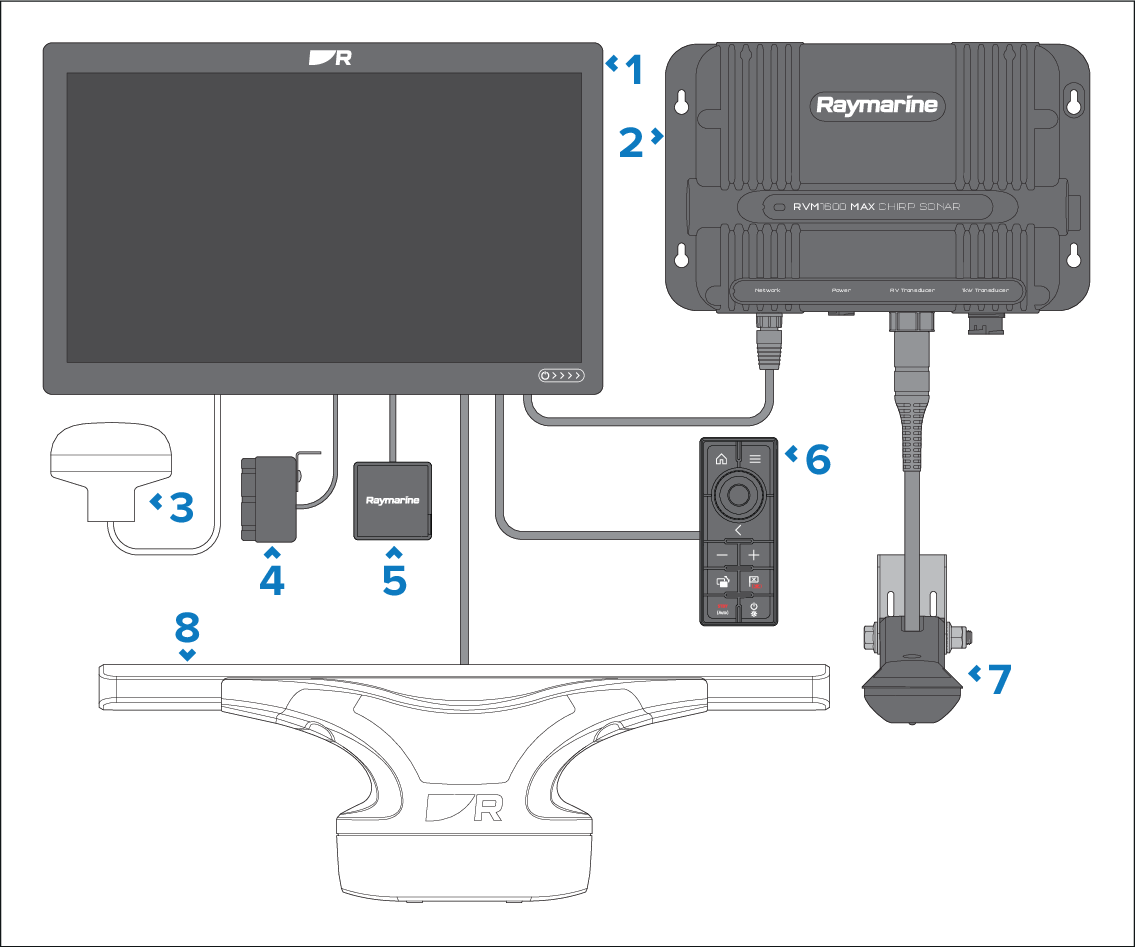

Example basic system
Typical systemSystem examplesPower supply connection are not shown in the examples. For details on how to connect power to your devices refer to the power connection details in the instructions that were supplied with your devices.
Axiom® 2 XL display
External Raymarine sonar module (RVM1600 illustrated)
External GNSS antenna (e.g.: GA200, part number A80589)
Alarm buzzer (part number E26033)
RCR-SD/USB external card reader (part number A80440)
RMK-10 display remote (part number A80438 / T70293)
Raymarine sonar transducer (RVM-100 illustrated)
Raymarine radar scanner (Cyclone™ illustrated)
Raymarine thermal camera (M300 illustrated)
YachtSense™ Link Marine Router
EV-1 Evolution™ autopilot (AHRS)
AR200 (augmented reality sensor)
Raymarine radar scanner (Cyclone™ illustrated)
External GNSS antenna (e.g.: GA200, part number A80589)
SeaTalk NG 5-way blocks (terminated SeaTalk NG CAN bus network)
Alarm buzzer (part number E26033)
Axiom® 2 XL displays
PoE IP cameras (CAM300 illustrated)
RCR-SD/USB external card reader (part number A80440)
RMK-10 display remote (part number A80438 / T70293)
Raymarine network switch (RNS-5 illustrated)
Autopilot controller (p70s illustrated)
ACU Evolution autopilot (drive not shown)
YachtSense™ Digital Control System (Master module assembly illustrated)
External Raymarine sonar module (RVM1600 illustrated)
Raymarine sonar transducer (RVM-100 illustrated)
Only the Datamaster MFD/Chartplotter requires a connection to the NMEA 2000 / SeaTalk NG network. Other MFDs/Chartplotters can be connected for data redundancy; however only the Datamaster MFD/Chartplotter will receive data from NMEA 2000 / SeaTalk NG devices. The Datamaster MFD/Chartplotter can bridge the data over the ethernet network to other MFDs/Chartplotters in the system.
