Tools required

The following tools are recommended for installation:

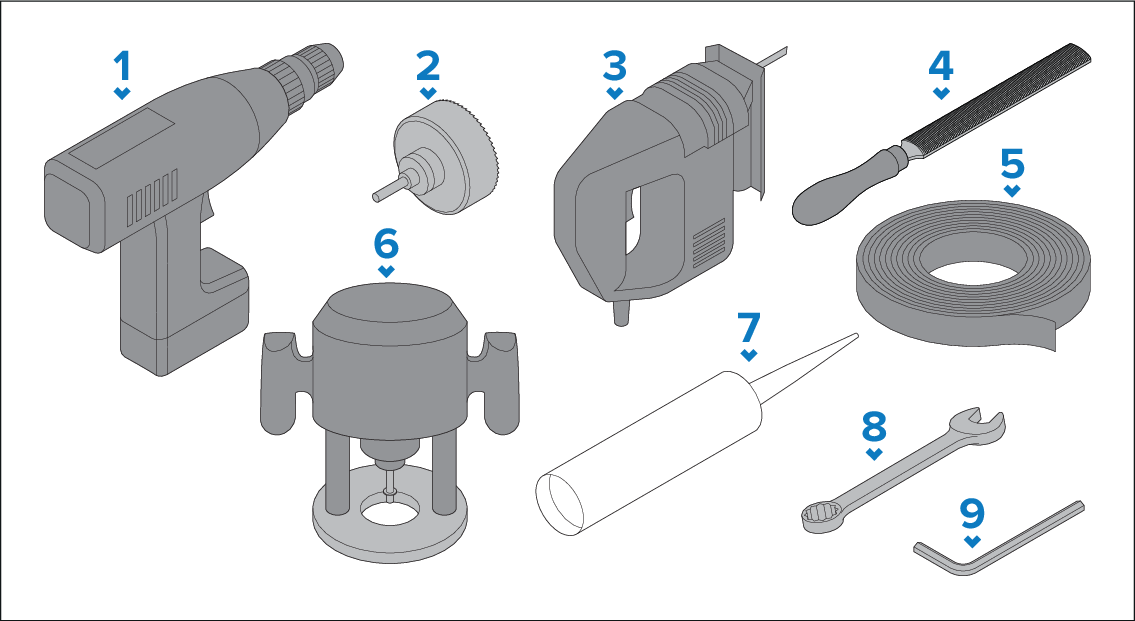

Tools requiredInstallation DisplayTools

  1. Power drill.

  2. Hole cutter (appropriate size for corner diameters of the Cut out line identified on the supplied mounting template):

    • 15.40 mm (0.61 in) — 16”, 19” and 24” displays.

    • 13.5 mm (0.53 in) — 22” displays.

  3. Jigsaw.

  4. Half round file (or sandpaper).

  5. Masking/self adhesive tape.

  6. * Hand router with a router bit an appropriate size for the 14.00 mm (0.55 in) corner diameter required for the flush mount rebate.

  7. Marine grade sealant.

  8. 8 mm (5/16”) wrench or small adjustable wrench.

  9. 4 mm Hex wrench (Allen key).

Note

* Items are only required when flush mounting the display.
