STV connection

You can connect Satellite TV equipment such as an STV37 to the HDMI IN connector.

ConnectionsHDMI INSTV

Note

A 3rd party Satellite receiver with a HDMI out connection is required.

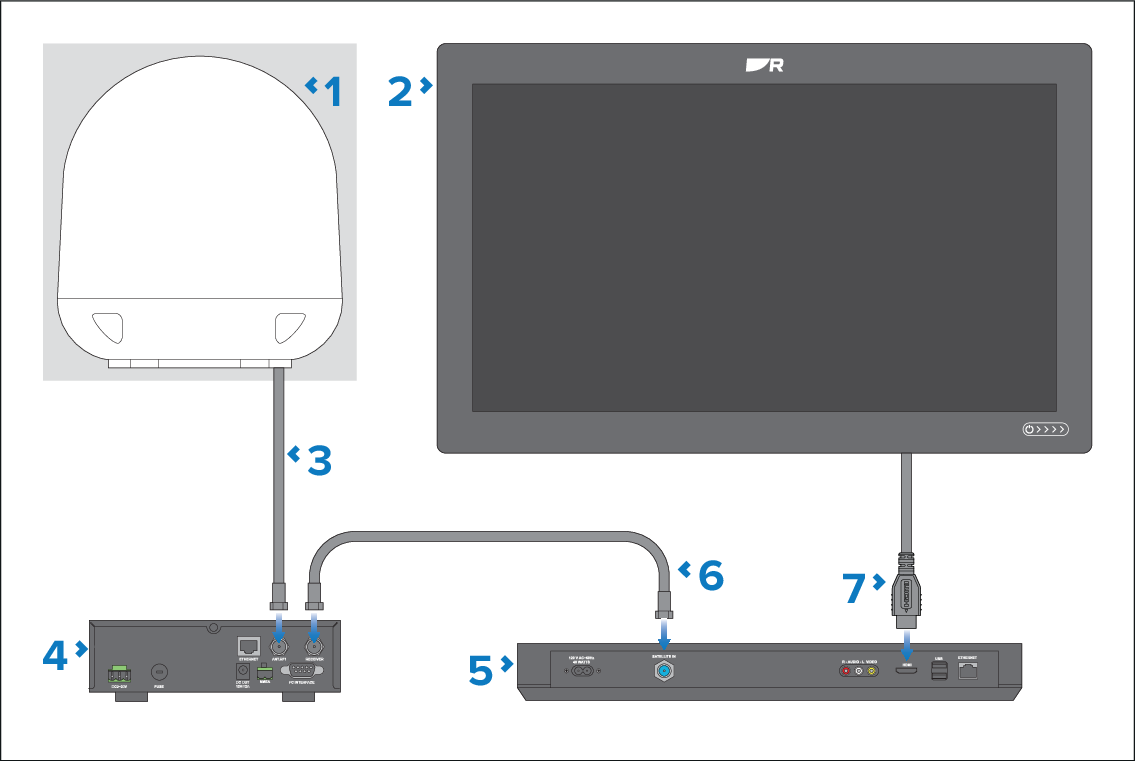

  1. Satellite TV antenna.

  2. Axiom® 2 XL display.

  3. RF cable (Connection between antenna and Antenna Control Unit (ACU).

  4. Antenna Control Unit (ACU).

  5. 3rd party satellite receiver.

  6. RF cable (Connection between ACU and receiver).

  7. HDMI cable (Connection between receiver and Axiom® 2 XL display).
