HDMI OUT connection

You can view the Raymarine® display’s screen and output its audio to an external third-party High Definition (HD) display, such as an HD TV or computer monitor.

ConnectionsHDMI OUTHDMI OUT ResolutionsYour Raymarine® display can be connected via the separately available HDMI cable accessory (part number: A80219). This cable connects to the HDMI Out connector located on the rear of the Raymarine® display, and to an available HDMI connector on the third-party display. The Raymarine® display screen can then be viewed by switching the third-party display’s input source to the HDMI connection that you connected your Raymarine® display to.

Alternatively, you can connect the Raymarine® display’s HDMI out connection to a sound system that has an HDMI input connection. Depending on the connected device, this may support audio only.

The supported screen resolutions for the Raymarine® display’s HDMI output are:

  • 720 x 480p @ 60 Hz

  • 720 x 576p @ 50 Hz

  • 1280 x 720p @ 50 Hz / 60 Hz

  • 1920 x 1080p @ 50 Hz / 60 Hz

Note

  • The maximum supported HDMI cable length is 20 m (65.6 ft). If longer cable runs are needed, an HDMI extender (signal amplifier) is also required, available separately from suitable retailers.

  • Ensure that the HDMI cable’s locking collar is used to secure the cable to the Raymarine® display.

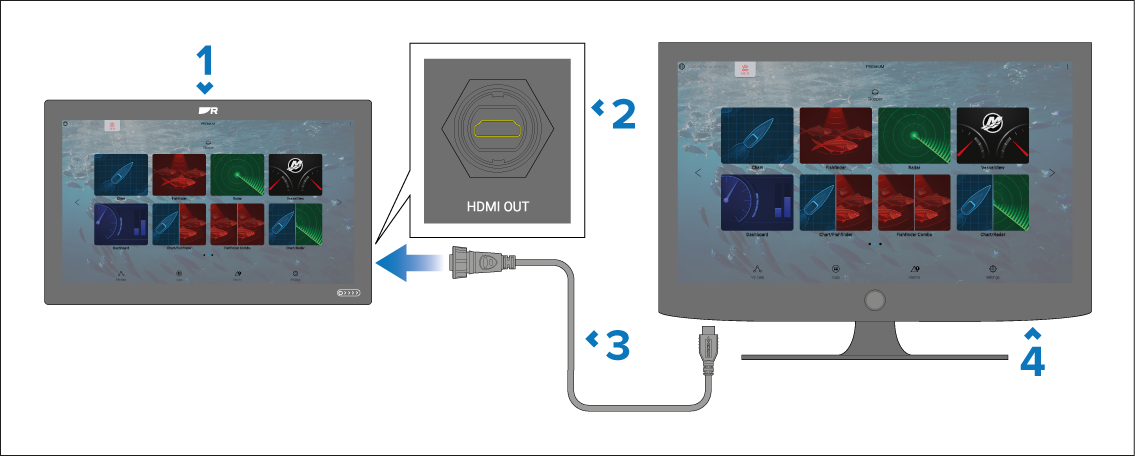

  1. Raymarine® Display.

  2. Raymarine® Display’s HDMI Out connector.

  3. HDMI cable (part number: A80219) — Not supplied.

  4. Third-party display.
