GNSS (GPS) antenna connection
A passive GNSS antenna is required to obtain a position fix using the display’s built-in GNSS (GPS) receiver. The antenna is connected to the GPS ANTENNA connector located on the rear of the display.
ConnectionsGPS antennaGPS antenna connectionGNSS antenna connection

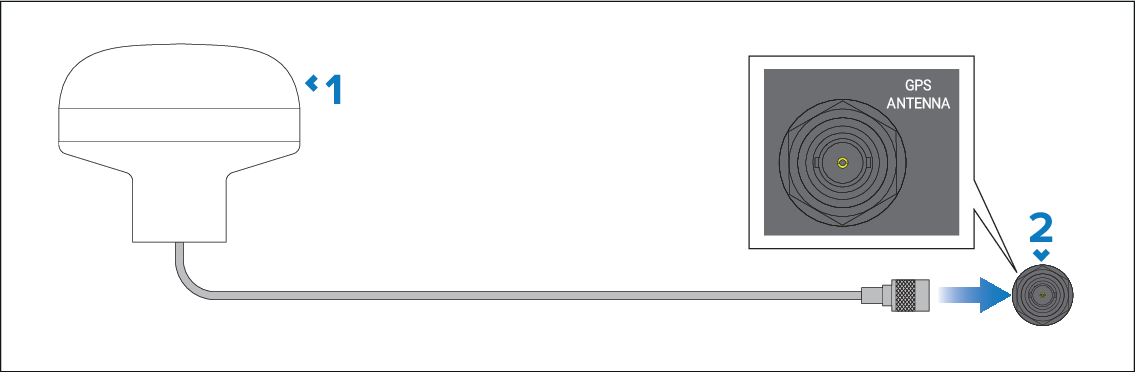

Passive GNSS (GPS) antenna:
GA200 (part number: A80589), or
GA150 (part number: A80288)
Display’s GPS Antenna connector.
For installation details, refer to the documentation provided with your GNSS (GPS) antenna.
