Product overview

The Axiom® 2 XL is a range of large touchscreen glass bridge-style multifunction displays.

Product overviewAxiom® 2 XL features include:

  • Full range of navigation, sonar, radar, data, entertainment and other apps available, via the embedded LightHouse operating system.

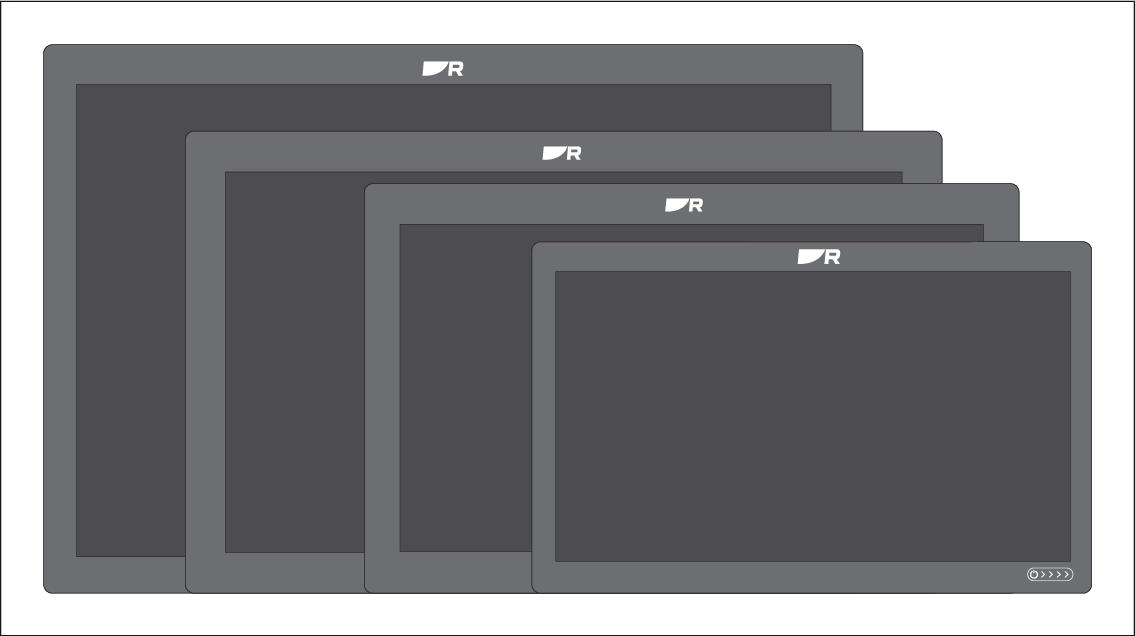

  • Available in 16, 19, 22 and 24 inch screen sizes.

  • Hexacore (6-core) processor.

  • 64 GByte internal solid state storage, for user data.

  • Edge-to-edge glass construction.

  • Multi-point touchscreen.

  • Optional physical controls available via RMK-10 remote keypad accessory (A80438)

  • Full HD IPS display.

  • Hydrotough™ nano-coated, impact-resistant glass screen, which repels water, oil, and smudges for better viewing and accurate touch controls.

  • Ambient light sensor for automatic brightness adjustment.

  • Wide viewing angles.

  • HDMI input and output.

  • USB input and output for touch control:

    • HDMIView and control your Axiom® 2 XL display from a third-party compatible touchscreen monitor, using the HDMI output and USB input connections.

    • Touch controlView and control a PC or other device from your Axiom® 2 XL display touchscreen, using the HDMI input and USB output connections.

  • Analog audio output (via RCA connectors on power / video / audio cable connected to third-party external amplifier / entertainment system).

  • 2 x Analog video inputs (via BNC connectors); one via supplied power / video / audio cable, and a second via optional alarm / video cable (A80235)*.

  • GNSS (GPS) external passive antenna connection, via optional GNSS (GPS) antenna (A80288)**.

  • External alarm connection for optional Alarm buzzer (E26033)*, via optional alarm / video cable (A80235)*.

  • Power over Ethernet (PoE)3 x Gigabit Power over Ethernet (PoE) network (RayNet) connections, for powering up to 3 PoE devices using the RayNet network connections (shared 32 W maximum power output).

  • NMEA 2000 DeviceNet connection (or SeaTalk NG, via the supplied adapter cable).

  • NMEA 0183 connection available, via optional NMEA 0183 to NMEA 2000 convertor (A80721).

  • External SD card reader connection, via optional RCR-SDUSB card reader (A80440)*.

  • Waterproof to IPx6 and IPx7 (suitable for above or below decks installation).

Note

  • * items marked with a single asterisk are supplied with the following product variants: T70545, T70546, T70547, T70548, and the T70431 Axiom® XL Accessory pack.

  • ** items marked with a double asterisk are supplied with the optional T70431 Axiom® 2 XL Accessory pack.

  • For further information on accessories and cables, refer to: Spares and accessories
