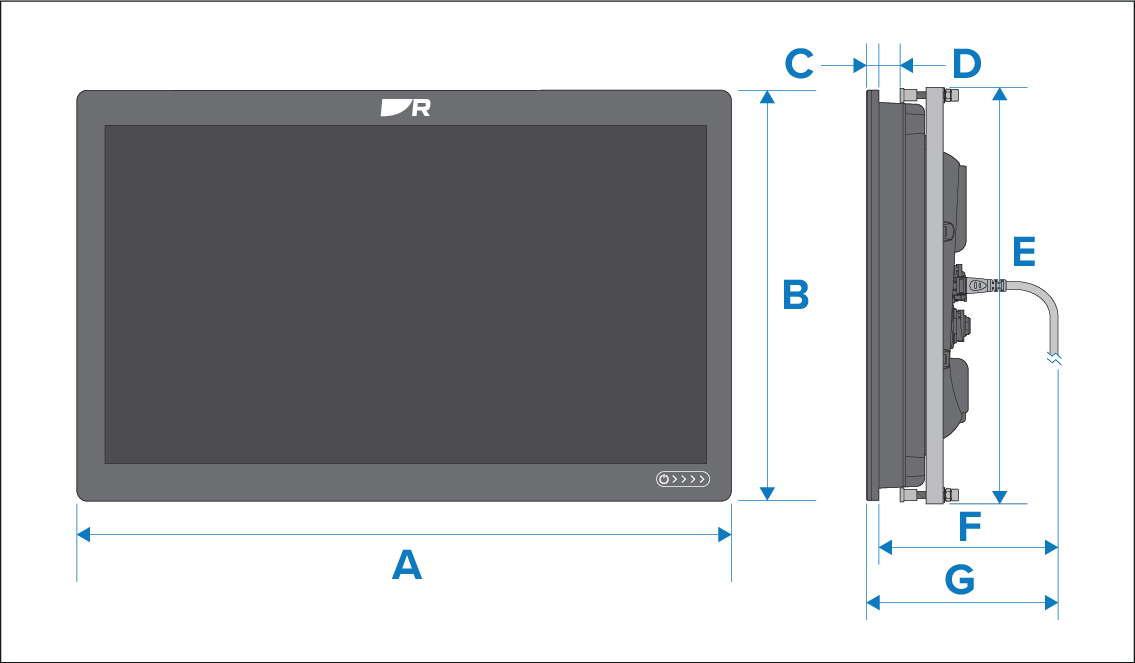

Display dimensions
16” Display |
19” Display |
22” Display |
24” Display |
|
|---|---|---|---|---|
A |
394.9 mm (15.55 in) |
461.78 mm (18.18 in) |
533.56 mm (21.00 in) |
578.40 mm (22.77 in) |
B |
248.22 mm (9.77 in) |
289.44 mm (11.40 in) |
326.33 mm (12.85 in) |
386.84 mm (15.23 in) |
C |
9 mm (0.35 in) |
9 mm (0.35 in) |
9 mm (0.35 in) |
9 mm (0.35 in) |
D |
Min. 6 mm (0.24 in) Max. 19 mm (0.75 in) |
Min. 6 mm (0.24 in) Max. 19 mm (0.75 in) |
Min. 6 mm (0.24 in) Max. 19 mm (0.75 in) |
Min. 6 mm (0.24 in) Max. 19 mm (0.75 in) |
E |
253 mm (9.96 in) |
294 mm (11.57 in) |
331 mm (13.03 in) |
392 mm (15.43 in) |
F |
98.54 mm (3.88 in) to 179.26 mm (7.06 in) |
98.54 mm (3.88 in) to 179.26 mm (7.06 in) |
98.54 mm (3.88 in) to 179.26 mm (7.06 in) |
100.99 mm (3.98 in) to 182.01 mm (7.17 in) |
G |
107.54 mm (4.23 in) to 188.26 mm (7.41 in) |
107.54 mm (4.23 in) to 188.26 mm (7.41 in) |
107.54 mm (4.23 in) to 188.26 mm (7.41 in) |
109.99 mm (4.33 in) to 191.01 mm (7.52 in) |
Dimension D above shows the minimum and maximum thickness of the mounting surface when surface mounting the display.
Dimensions C+D show the minimum and maximum mounting surface thickness when flush mounting the display.
Dimension F & G are the depths required for surface mounting and flush mounting. These depths are variable based on the cable connections required and types of cable used in the installation.
The minimum possible depth reflects an installation with only a right-angled power cable connected and no card reader connected.
The maximum depth reflects an installation with HDMI cable connected.
Dimension F — examples
For examples of dimension G, add 9.00 mm (0.35 in) to the values below.
16” Display |
19” Display |
22” Display |
24” Display |
|
|---|---|---|---|---|
HDMI IN / OUT cables connected |
179.26 mm (7.06 in) |
179.26 mm (7.06 in) |
179.26 mm (7.06 in) |
191.01 mm (7.52 in) |
GPS antenna cable connected |
159.58 mm (6.28 in) |
159.58 mm (6.28 in) |
163.16 mm (6.42 in) |
165.91 mm (6.53 in) |
Card reader accessory connected |
141.31 mm (5.56 in) |
141.31 mm (5.56 in) |
141.31 mm (5.56 in) |
144.06 mm (5.67 in) |
Right-angle power cable connected |
98.54 mm (3.88 in) |
98.54 mm (3.88 in) |
98.54 mm (3.88 in) |
100.99 mm (3.98 in) |
