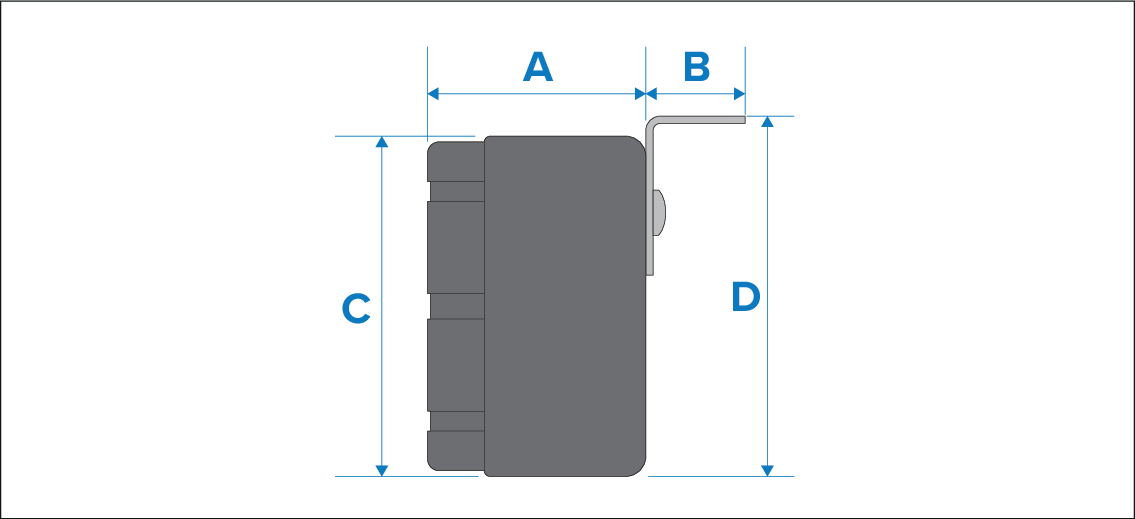

Alarm buzzer dimensions

Dimensions for the Alarm buzzer are provided below.

Dimensions Alarm buzzer

Measurement

A

38.00 mm (1.50 in)

B

18.00 mm (0.71 in)

C

60.00 mm (2.36 in)

D

63.00 mm (2.48 in)
