Typical systems

Examples of typical systems.

Typical systemSystem examples

Note

Power supply connections are not shown in the following example. For details on how to connect power to your devices, refer to the power connection details in the applicable device instructions.

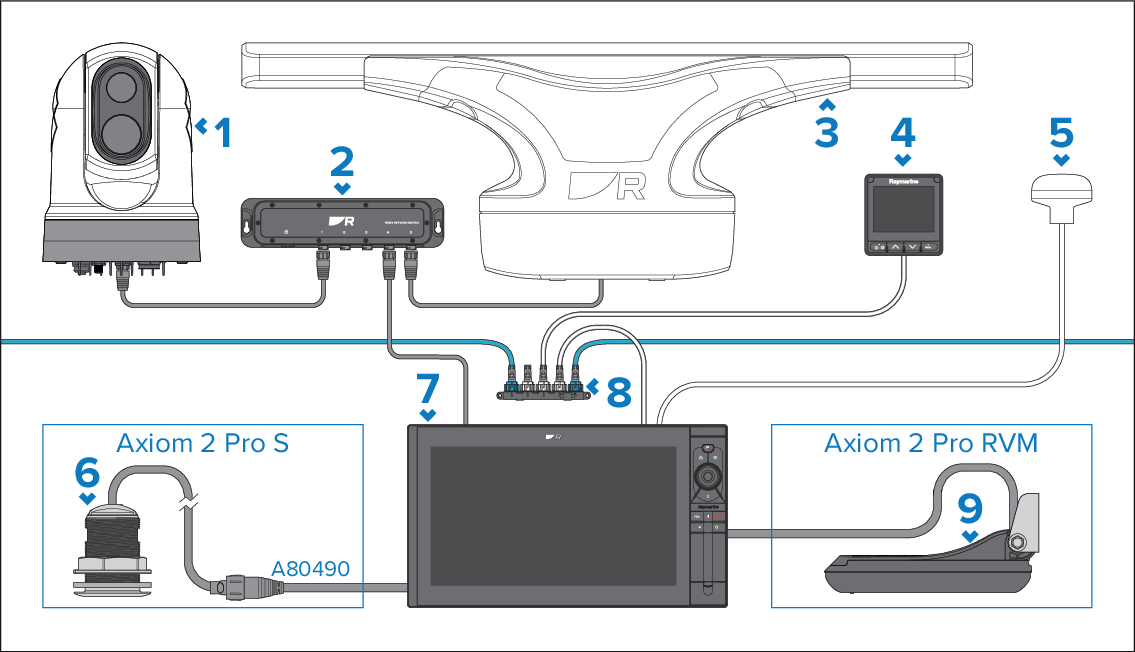

Example basic system

  1. Raymarine thermal camera (M300 illustrated).

  2. Raymarine network switch (RNS-5 illustrated).

  3. Raymarine radar scanner (Cyclone™ illustrated).

  4. SeaTalk NG® instrument (i70s illustrated).

  5. External GNSS antenna (e.g.: GA200, part number A80589).

  6. Example Raymarine CHIRP sonar transducer, compatible with the Axiom 2 Pro S variant (CPT-S illustrated, connected via A80490 adaptor cable).

  7. Axiom® 2 Pro display.

  8. SeaTalk NG® 5-way block (terminated SeaTalk NG® CAN bus network).

  9. Example Raymarine RealVision™ Max sonar transducer, compatible with the Axiom® 2 Pro RVM variant (RVM-100 illustrated).

Typical systemSystem examples

Note

Power supply connections are not shown in the following example. For details on how to connect power to your devices, refer to the power connection details in the applicable device instructions.

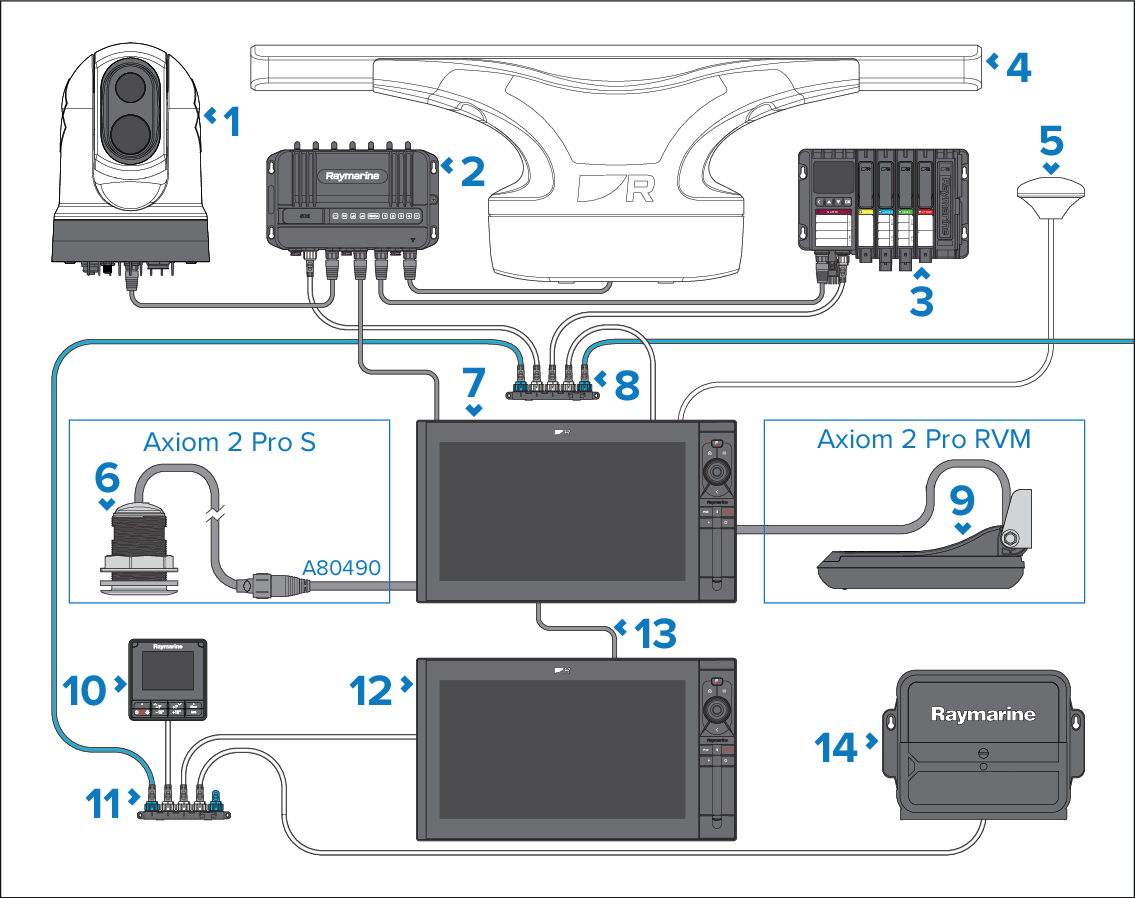

Example expanded system

  1. Raymarine thermal camera (M300 illustrated).

  2. YachtSense™ Link Marine Router.

  3. YachtSense™ Digital Control System (Master module assembly illustrated).

  4. Raymarine radar scanner (Cyclone™ illustrated).

  5. External GNSS antenna (e.g.: GA200, part number A80589).

  6. Example Raymarine CHIRP sonar transducer, compatible with the Axiom 2 Pro S variant (CPT-S illustrated, connected via A80490 adaptor cable).

  7. Axiom® 2 Pro display.

  8. SeaTalk NG® 5-way block (terminated SeaTalk NG® CAN bus network).

  9. Example Raymarine RealVision™ Max sonar transducer, compatible with the Axiom 2 Pro RVM variant (RVM-100 illustrated).

  10. Autopilot controller (p70s illustrated).

  11. SeaTalk NG® 5-way block (terminated SeaTalk NG® CAN bus network).

  12. (Additional) Axiom® 2 Pro display.

  13. RayNet network connection between Raymarine displays.

  14. ACU Evolution autopilot (drive and EV sensor not shown).

Note

Only the Datamaster MFD/Chartplotter requires a connection to the NMEA 2000/SeaTalk NG® network. Other MFDs/Chartplotters can be connected for data redundancy; however only the Datamaster MFD/Chartplotter will receive data from NMEA 2000/SeaTalk NG® devices. The Datamaster MFD/Chartplotter can bridge the data over the ethernet network to other MFDs/Chartplotters in the system.
