Product overview
Axiom® 2 Pro is a range of HybridTouch™ multifunction displays.
Product featuresProduct overviewFeatures include:
Full range of navigation, sonar, radar, data, entertainment and other apps available via the embedded LightHouse operating system.

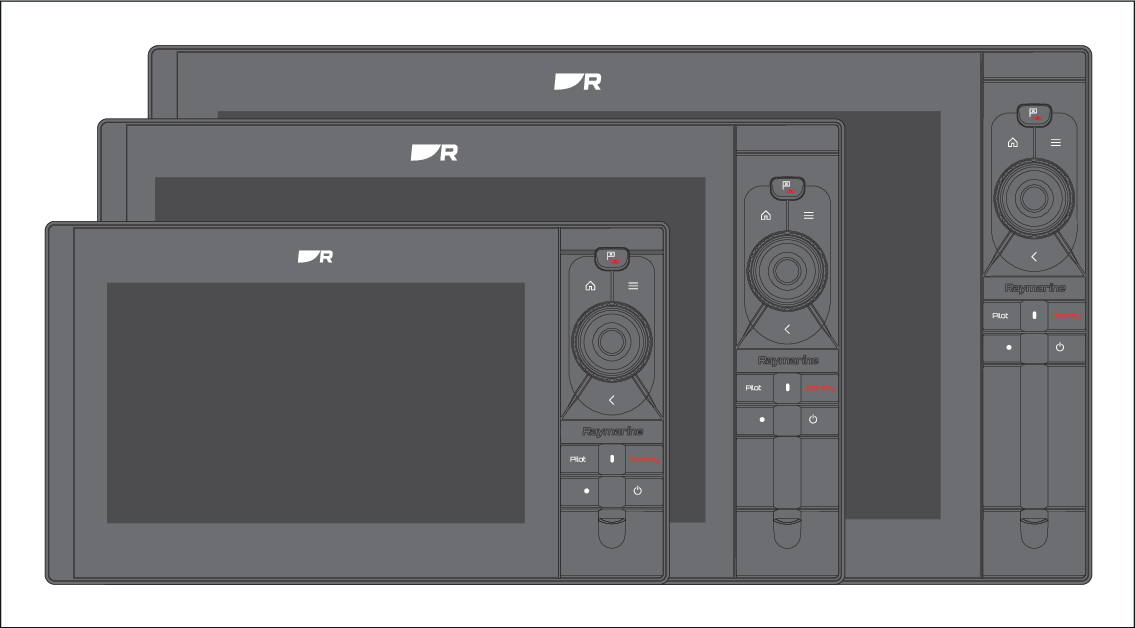

Available in 9, 12 and 16 inch screen sizes.
Hexacore (6-core) processor.
64 GByte internal solid state storage, for user data.
HybridTouch™ technology (physical buttons and multi-point touchscreen).
Bright Hydrotough™ full HD IPS displays with nano-coated, impact-resistant glass repel water, oil, and smudges. Wide viewing angles and accurate touch controls.
Ambient light sensor for automatic brightness adjustment.
HDMI output (via Micro HDMI adapter cable, A80723).
Analog audio output (via RCA connectors on supplied power/video/audio cable connected to external third-party amplifier/entertainment system).
Wireless digital audio output (via Bluetooth connection to external third-party Bluetooth speaker / sound system).
Analog video input (via BNC connector on supplied power/video/audio cable).
2 x Gigabit ethernet (RayNet) connections.
NMEA 2000 DeviceNet connection (or SeaTalk NG, via the supplied adapter cable).
NMEA 0183 connection available, via optional NMEA 0183 to NMEA 2000 convertor (part number: A80721).
RVM variants include an Internal RealVision™ Max 3D and 1 kW CHIRP sonar module. (Backwards compatible with existing RealVision™ 3D transducers). RealVision™ Max 3D technology provides improved ping rates and tighter beamwidths, resulting in sharper sonar images, detailed wrecks, and distinct fish targets.
S variants include an Internal 100 W CHIRP conical beam sonar module.
Dual slot internal MicroSD card reader.
Configurable lower keypad (pilot controls or user-programmable favorite buttons).
Optional external SD card reader connection, via RCR-SDUSB card reader (part number: A80440).
Optional external GNSS (GPS) passive antenna connection.
Waterproof to IPx6 and IPx7 (suitable for above or below decks installation).
