Trunnion bracket mounting

Once the display has been prepared using the instructions and parts supplied, it can be mounted using the trunnion bracket as follows:
Note

Fixings to secure the trunnion bracket to a mounting surface are not provided. 5 x self-tapping screws are required. The screws should be suitable for the mounting surface material and the 5.75 mm (0.23 in) diameter mounting holes in the trunnion bracket.

InstallationTrunnion mountingEnsure you have chosen a suitable mounting location for your display, which has sufficient headroom to allow the display’s angle to be adjusted, or the display to be removed if necessary. If installing the display ‘above head height’, take extra care to ensure the knobs are tightened sufficiently to prevent them coming loose due to vibration when underway.

Important

2 person installation is required.

  1. Check the underside of the mounting surface to ensure no damage will be caused by drilling.
  2. Check the thickness of the mounting surface to ensure it is sufficient to support the display.

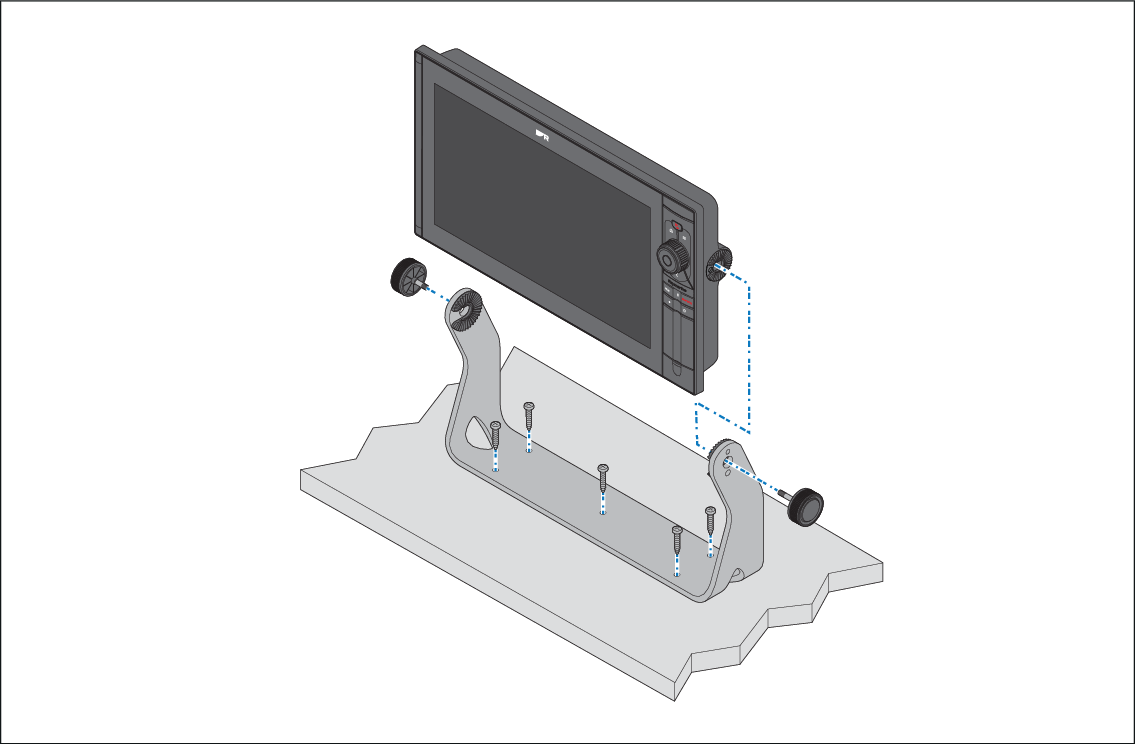

  3. Using the Trunnion bracket as a template, mark and drill the 5 x pilot holes on the mounting surface.
  4. Secure the Trunnion bracket to the mounting surface using your self-tapping screws and an appropriate screwdriver.
  5. One person should align the trunnion holes in the side of the display with the holes in the trunnion bracket.
  6. The second person should secure the display to the trunnion bracket by inserting and tightening the trunnion knobs, ensuring that the ratchet teeth are correctly engaged.

    The knobs should be tightened by hand, sufficiently to prevent the display from moving whilst your vessel is underway.

  7. Route and connect necessary cables.
