Tools required (flush mount installations)

The following tools are recommended for flush mount installations:

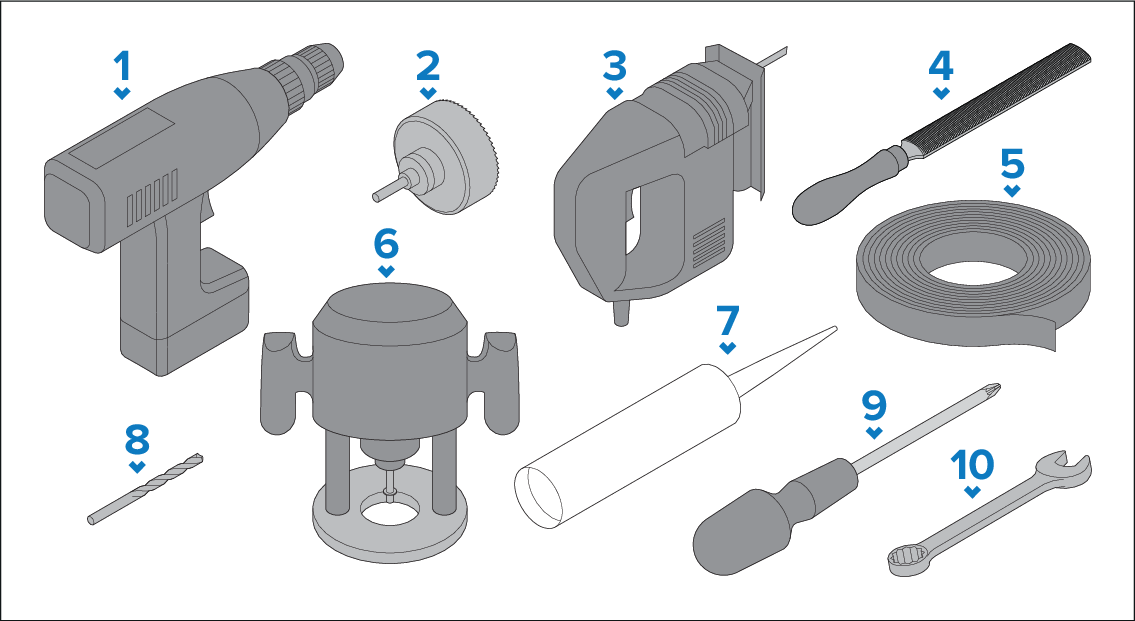

Tools required Flush mountingTools required

  1. Power drill.

  2. Hole cutter (appropriate size for corner diameters of the Cutout line identified on the supplied mounting template):

    • 33.00 mm (1.30 in) — Axiom® 2 Pro 9.

    • 37.00 mm (1.47 in) — Axiom® 2 Pro 12 / Axiom® 2 Pro 16.

  3. Jigsaw.

  4. Half round file (or sandpaper).

  5. Masking/self adhesive tape.

  6. Hand router with a router bit an appropriate size for the 9.00 mm (0.35 in) corner diameter required for the flush mount rebate.

  7. Marine grade sealant.

  8. Drill bit 3.7 mm (5/32”) for fixing holes.

  9. Pozi-drive screwdriver.

  10. 7 mm wrench or small adjustable wrench.
