Network connection

The display can be connected to compatible network products by connecting a network cable between the product and one of the NETWORK connectors located on the rear of the display. Alternatively, the display can be connected to a network switch, e.g.: RNS-5, or the YachtSense™ Link marine router.

ConnectionsNetworkRayNetEthernetRayNet connectionNetwork connectionEthernet connection

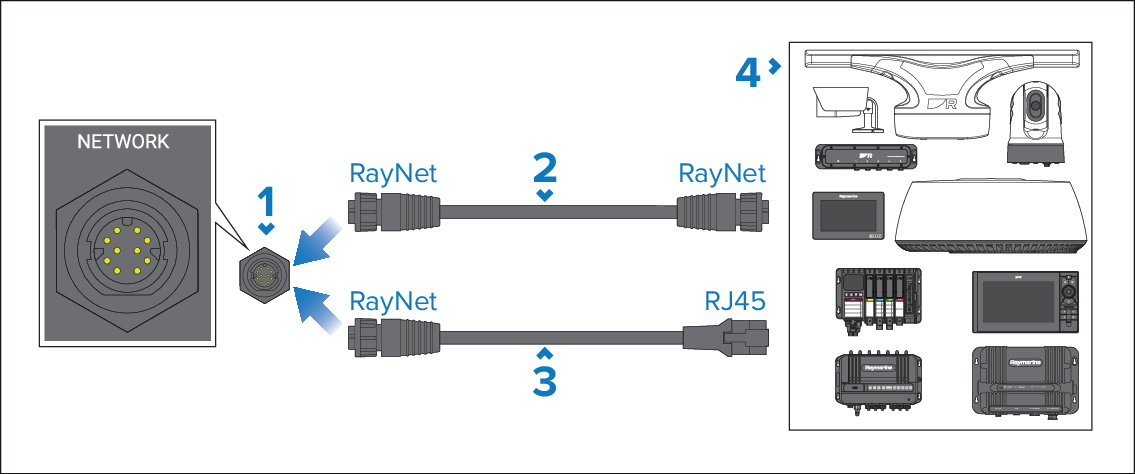

  1. Display’s NETWORK connector.

  2. RayNet to RayNet cable — Connect one end of the RayNet cable to your display, and the opposite end to a RayNet device or RayNet network switch.

  3. RayNet to RJ45 adapter cable — Connect the RayNet end of the cable to your display, and the opposite end to a network device with an RJ45 connector, or an RJ45 coupler.

  4. Examples of compatible network devices with RayNet or RJ45 connectors (e.g.: Radar scanners, Sonar modules, Displays, Network switches, Cameras etc).

For a list of available network cables, refer to: Spares and accessories
