Cable suppression ferrites
To ensure optimum EMC performance and to comply
with applicable EMC regulations all RayNet cables connected to this product
must have a suppression ferrite fitted.
Connections RayNetRayNet cableSuppression ferriteThree suppression ferrites are included with your product, one for each RayNet connection.

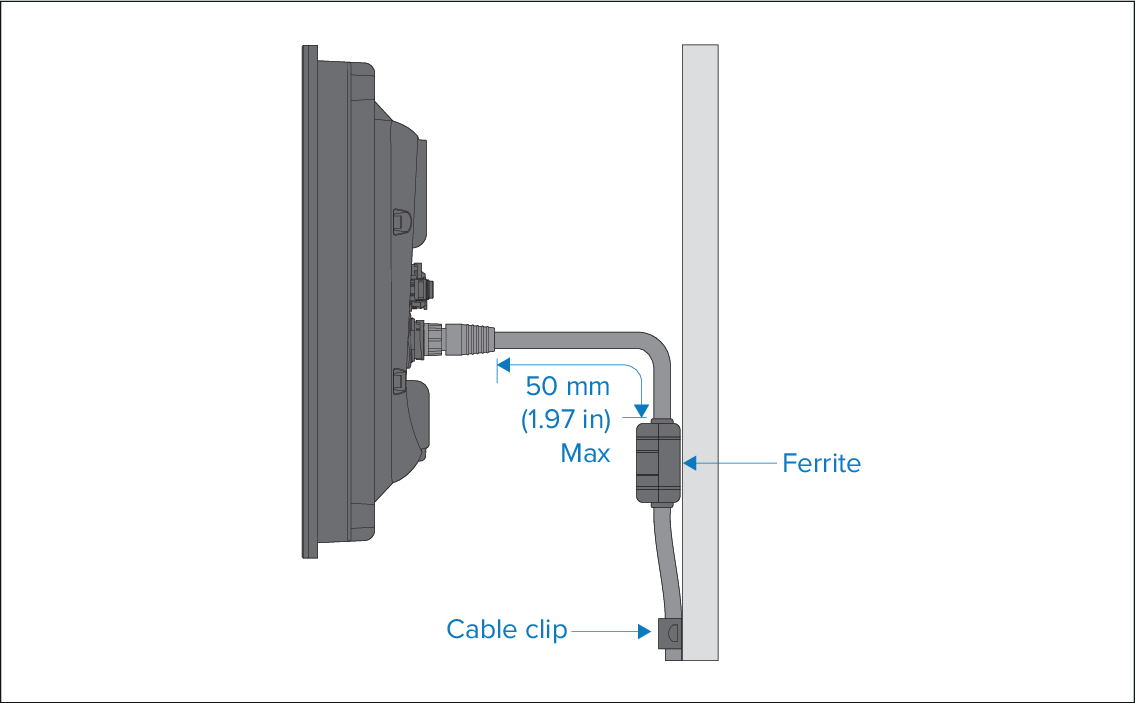

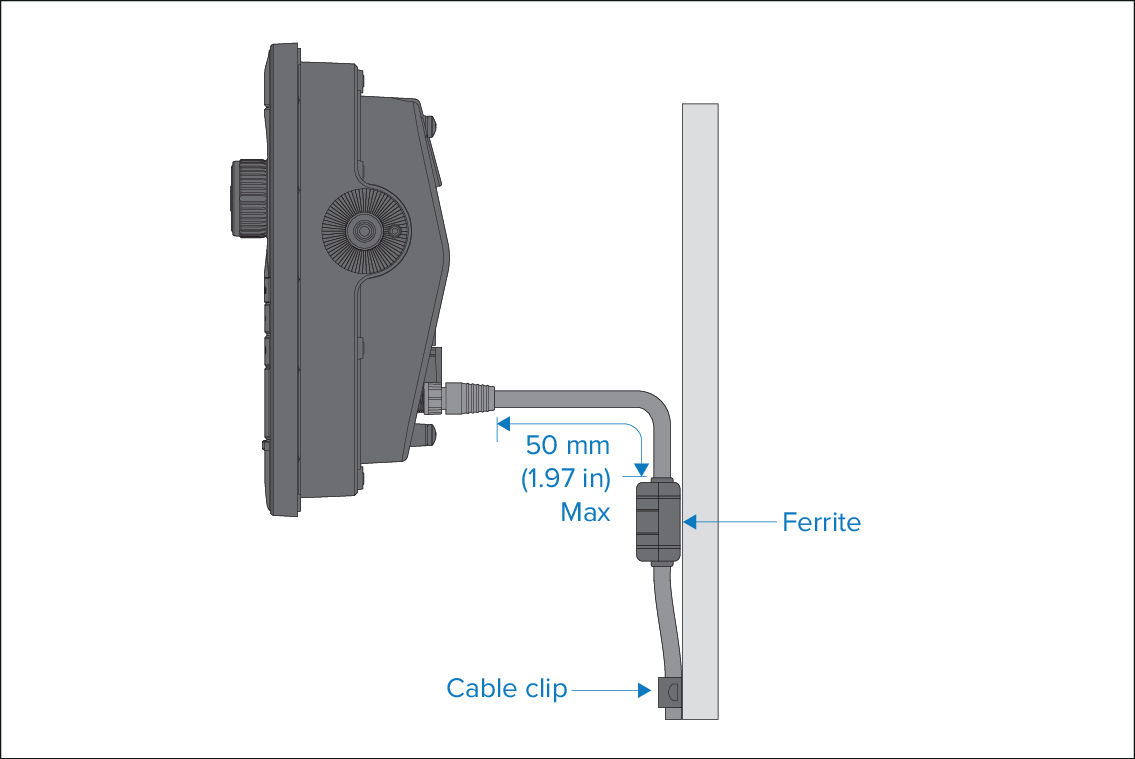

Fit a ferrite to each RayNet cable as shown below:
Cable clips (not supplied) should be used to support the cable and ferrite.
If you need to remove a ferrite for any reason, ensure it is replaced in its original location before using the product.
If the ferrite moves freely once fitted, use cable ties (not supplied) above and below the ferrite to secure it in place.
