HDMI Out connection
You can mirror the Raymarine® display’s screen and output its audio to an external third-party High Definition (HD) display, such as an HD TV or computer monitor.
ConnectionsHDMI OutHDMI Out Resolutions
Your Raymarine® display can be connected via the separately available Micro HDMI (Type D) to HDMI accessory cable (part number A80723). This cable connects to the Micro HDMI Out connector located on the rear of the Raymarine® display, and to an available HDMI input on the third-party display. The Raymarine® display screen can then be viewed by switching the third-party display’s input source to the HDMI input that you connected your Raymarine® display to.
Alternatively, you can connect the Raymarine® display’s HDMI out connection to a sound system that has an HDMI input connection. Depending on the connected device, this may support audio only.
The supported screen resolutions for the Raymarine® display’s HDMI output are:
720 x 480p @ 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50 Hz / 60 Hz
1920 x 1080p @ 50 Hz / 60 Hz
The maximum supported HDMI cable length is 20 m (65.6 ft). If longer cable runs are needed, an HDMI extender (signal amplifier) is also required, available separately from suitable retailers.
Ensure that the HDMI cable’s locking collar is used to secure the cable to the Raymarine® display.

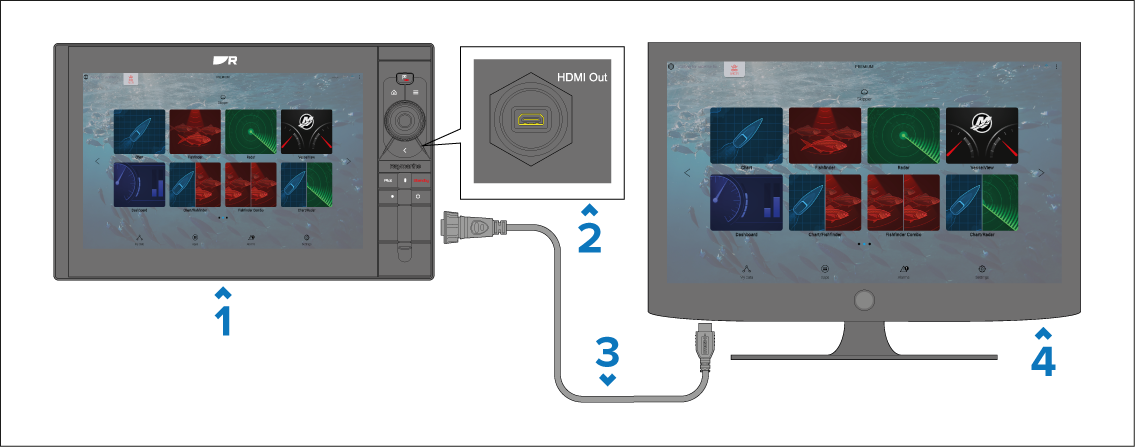

Raymarine® Display.
Raymarine® Display’s HDMI Out connector.
Micro HDMI (Type D) to HDMI accessory cable (part number A80723) — Not supplied.
Third-party display.
